0J48613TC
ActiveMagnetics, a division of Spang & Co.

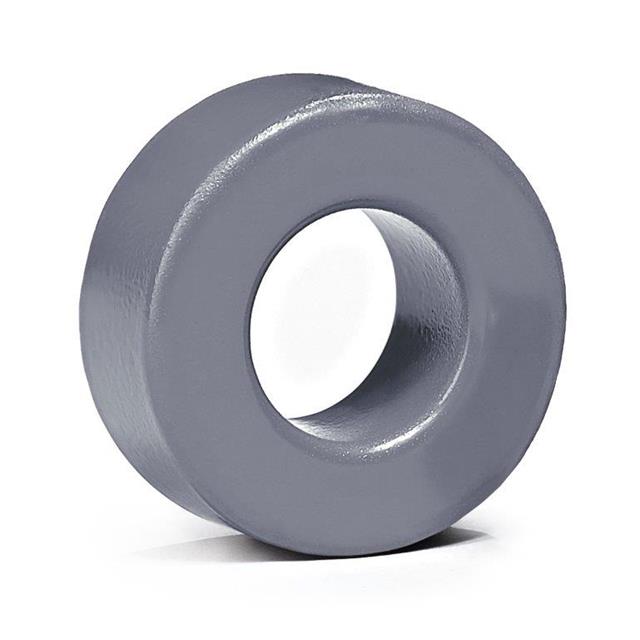

FERRITE CORE TOROID 5.52UH
0J48613TC
ActiveMagnetics, a division of Spang & Co.
FERRITE CORE TOROID 5.52UH
Description
General part information
0J48613TC
Uncoated Ferrite Core Toroid Type Length Width 3.374" (85.70mm) Diameter 0.500" (12.70mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | 0J48613TC |
|---|---|
| Core Type | Toroid |
| Diameter | 3.374 in |
| Effective Area (Ae) | 188.8 mm² |
| Effective Length (le) | 214.9 mm |
| Effective Magnetic Volume (Ve) | 40852 mm³ |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 0.5 in |
| Inductance Factor (Al) | 5.52 µH |
| Initial Permeability (µi) | 5000 |
| Tolerance | 20 % |
