3036071
ActivePhoenix Contact
CONN TERM BLK GROUND 12-28AWG
3036071
ActivePhoenix Contact
CONN TERM BLK GROUND 12-28AWG
Description
General part information
3036071

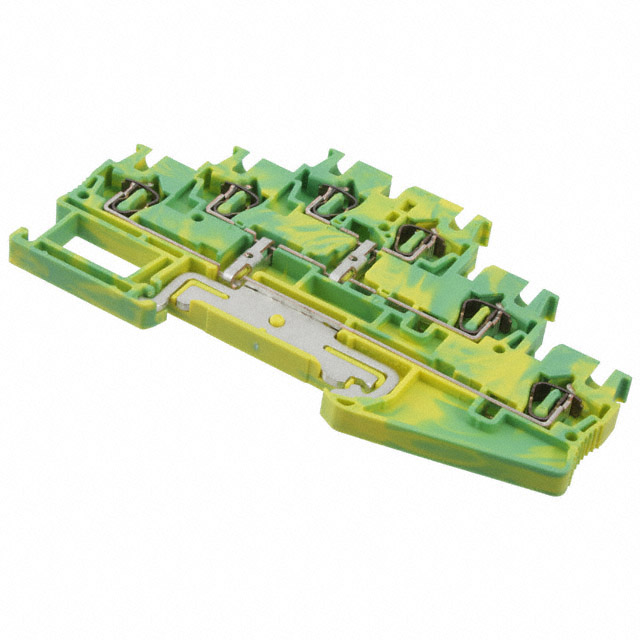

Terminal Block Connector 6 Position Ground, Earth Green, Yellow 12-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3036071 |
|---|---|
| Color | Yellow, Green |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 3 |
| Number of Levels (Connection) | Connected |
| Number of Positions | 6 |
| Stripping Length | 10 mm |
| Terminal Width | 5.2 mm |
| Termination Style | Push In, Spring |
| Type | Earth, Ground |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
