0034.6917
ObsoleteSCHURTER Inc.
FUSE BOARD MNT 1.6A 250VAC RAD
0034.6917
ObsoleteSCHURTER Inc.
FUSE BOARD MNT 1.6A 250VAC RAD
Description
General part information
0034.6917

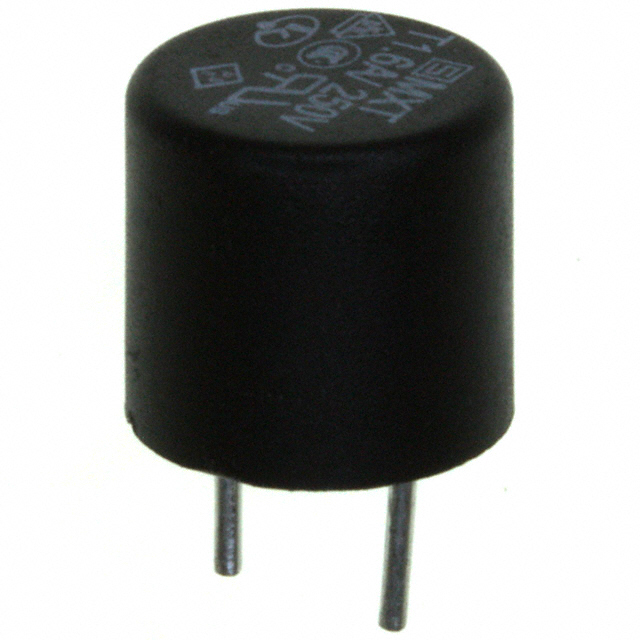

1.6 A 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Can, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | 0034.6917 |
|---|---|
| Approval Agency | CCC, PSE/JET, VDE, cURus, KC |
| Breaking Capacity | 100 A |
| Current Rating | 1.6 A |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 10 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Vertical, Radial |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.335 in |
| Size / Dimension Height | 0.335 in |
| Voltage Rating - AC | 250 V |
