2010/30 100SF

Active

CBL RIBN 30COND 0.05 WHITE 5'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCables & Accessories Selection Guide

2010/30 100SF

Active

CBL RIBN 30COND 0.05 WHITE 5'

Deep-Dive with AI

DocumentsCables & Accessories Selection Guide

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

2010 Series

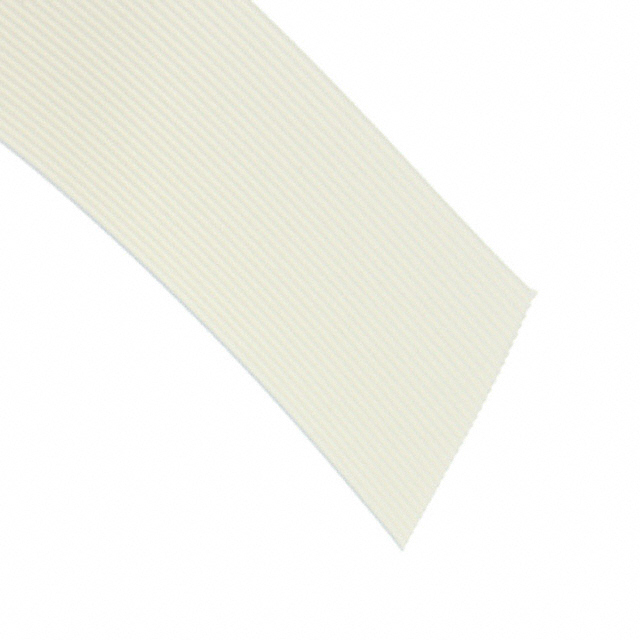

Flat Ribbon Cable White 30 Conductors 0.050" (1.27mm) Flat Cable 5.0' (1.52m)

Documents

Technical documentation and resources

Cables & Accessories Selection Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2010/30 100SF	2010 Series

Cable Type	Flat Cable	Flat Cable
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	36 AWG	36 AWG
Features	Zippable, Splice Free	Zippable, Splice Free
First Conductor Mark	Blue	Blue
Insulation Resistance	10 GOhm	10 GOhm
Jacket (Insulation) Material	Polyolefin (PO)	Polyolefin (PO)
Length	25 ft	25 - 50 ft
Length	7.62 m	7.62 - 15.24 m
Length [x]	100 ft	10 - 100 ft
Length [x]	30.48 m	3.05 - 30.48 m
Number of Conductors	30	9 - 60
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-20 C	-20 C
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Ratings	UL Style 20930	UL Style 20930
Ribbon Thickness	0.89 mm	0.89 mm
Ribbon Thickness	0.035 in	0.035 in
Ribbon Width	-	0.45 - 3 "
Ribbon Width	-	1 - 76.2 mm
Ribbon Width	-	25.4 mm
Ribbon Width	-	0.7 - 1.25 in
Ribbon Width	-	17.78 - 31.75 mm
Ribbon Width [y]	38.1 mm	20.32 - 50.8 mm
Ribbon Width [y]	1.5 in	0.8 - 2 in
Shielding	Unshielded	Unshielded
Voltage	30 V	30 V
Wire Gauge	28 AWG	28 AWG

2010 Series

CBL RIBN 26COND 0.05 WHITE 100'

Part	Jacket (Insulation) Material	Cable Type	Features	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Width	Ribbon Width	Number of Conductors	First Conductor Mark	Insulation Resistance	Pitch [x]	Pitch [x]	Ribbon Thickness	Ribbon Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Voltage	Ratings	Shielding	Conductor Material	Ribbon Width [y]	Ribbon Width [y]	Length	Length	Ribbon Width	Ribbon Width [x]	Ribbon Width [x]
3M 2010/26 100SF	Polyolefin (PO)	Flat Cable	Splice Free, Zippable	28 AWG	-20 C	105 ░C	1.3 "	33.02 mm	26	Blue	10 GOhm	0.05 in	1.27 mm	0.89 mm	0.035 in	7	36 AWG	10 ft, 100 ft	3.05 m, 30.48 m	30 V	UL Style 20930	Unshielded	Copper, Tinned
3M 2010/09 100	Polyolefin (PO)	Flat Cable	Zippable	28 AWG	-20 C	105 ░C	0.45 in	11.43 mm	9	Blue	10 GOhm	0.05 in	1.27 mm	0.89 mm	0.035 in	7	36 AWG	100 ft	30.48 m	30 V	UL Style 20930	Unshielded	Copper, Tinned
3M 2010/26 100	Polyolefin (PO)	Flat Cable	Zippable	28 AWG	-20 C	105 ░C	1.3 "	33.02 mm	26	Blue	10 GOhm	0.05 in	1.27 mm	0.89 mm	0.035 in	7	36 AWG	100 ft	30.48 m	30 V	UL Style 20930	Unshielded	Copper, Tinned
3M 2010/40 100SF	Polyolefin (PO)	Flat Cable	Splice Free, Zippable	28 AWG	-20 C	105 ░C			40	Blue	10 GOhm	0.05 in	1.27 mm	0.89 mm	0.035 in	7	36 AWG			30 V	UL Style 20930	Unshielded	Copper, Tinned	50.8 mm	2 in	25 ft	7.62 m
3M 2010/60 100SF	Polyolefin (PO)	Flat Cable	Splice Free, Zippable	28 AWG	-20 C	105 ░C	3 in	76.2 mm	60	Blue	10 GOhm	0.05 in	1.27 mm	0.89 mm	0.035 in	7	36 AWG	10 ft, 100 ft	3.05 m, 30.48 m	30 V	UL Style 20930	Unshielded	Copper, Tinned			25 ft	7.62 m
3M 2010/15 100SF	Polyolefin (PO)	Flat Cable	Splice Free, Zippable	28 AWG	-20 C	105 ░C	0.75 "	19.05 mm	15	Blue	10 GOhm	0.05 in	1.27 mm	0.89 mm	0.035 in	7	36 AWG	100 ft	30.48 m	30 V	UL Style 20930	Unshielded	Copper, Tinned			25 ft, 50 ft	7.62 m, 15.24 m
3M 2010/20 100	Polyolefin (PO)	Flat Cable	Zippable	28 AWG	-20 C	105 ░C		1 in	20	Blue	10 GOhm	0.05 in	1.27 mm	0.89 mm	0.035 in	7	36 AWG	100 ft	30.48 m	30 V	UL Style 20930	Unshielded	Copper, Tinned					25.4 mm
3M 2010/14 100	Polyolefin (PO)	Flat Cable	Zippable	28 AWG	-20 C	105 ░C			14	Blue	10 GOhm	0.05 in	1.27 mm	0.89 mm	0.035 in	7	36 AWG	100 ft	30.48 m	30 V	UL Style 20930	Unshielded	Copper, Tinned						0.7 in	17.78 mm
3M 2010/25 100SF	Polyolefin (PO)	Flat Cable	Splice Free, Zippable	28 AWG	-20 C	105 ░C			25	Blue	10 GOhm	0.05 in	1.27 mm	0.89 mm	0.035 in	7	36 AWG	10 ft, 100 ft	3.05 m, 30.48 m	30 V	UL Style 20930	Unshielded	Copper, Tinned			25 ft, 50 ft	7.62 m, 15.24 m		1.25 "	31.75 mm
3M 2010/37 100SF	Polyolefin (PO)	Flat Cable	Splice Free, Zippable	28 AWG	-20 C	105 ░C	1.85 in	46.99 mm	37	Blue	10 GOhm	0.05 in	1.27 mm	0.89 mm	0.035 in	7	36 AWG	10 ft, 100 ft	3.05 m, 30.48 m	30 V	UL Style 20930	Unshielded	Copper, Tinned			25 ft, 50 ft	7.62 m, 15.24 m
