Description
General part information

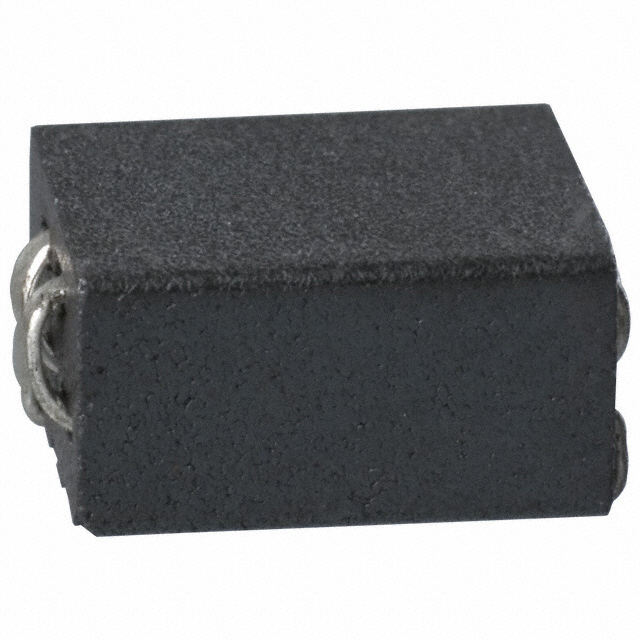

SMB2.5-1
385 Ohms @ 100 MHz 1 Ferrite Bead 2-SMD, J-Lead 9.5A 5mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | SMB2.5-1 |
|---|---|
| Current Rating (Max) | 9.5 A |
| DC Resistance (DCR) (Max) | 5 mOhm |
| Height (Max) | 0.2 in |
| Impedance | 385 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension Length | 0.46 in |
| Size / Dimension Width | 0.283 in |
