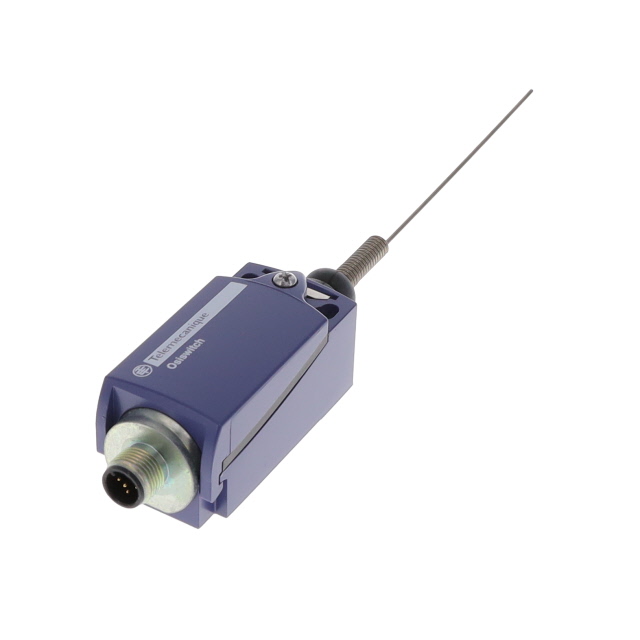

XCKD2106M12
ActiveLIMIT SWITCH, WOBBLE CAT WHISKER, SPST-NO, SPST-NC, 3 A, 50 V, 1.15 IN-LB, OSISENSE XC SERIES
XCKD2106M12
ActiveLIMIT SWITCH, WOBBLE CAT WHISKER, SPST-NO, SPST-NC, 3 A, 50 V, 1.15 IN-LB, OSISENSE XC SERIES
Description
General part information
XCKD2106M12
XCKD2106M12 is a standard format, multi-directional head, telemecanique limit switch. The rated operational current is 3A at 50V, AC-15 conforming to IEC 60947-5-1 appendix A, 0.27A at 50V, DC-13 conforming to IEC 60947-5-1 appendix A. It complies with UL 508, IEC 60204-1, IEC 60947-5-1, IEC 60947-5-1, IEC 60204-1, CSA C22.2 No 14.
Technical Specifications
Parameters and characteristics for this part
| Specification | XCKD2106M12 |
|---|---|
| Actuator Type | Cat Whisker, Spring |
| Circuit | DPDT (DB/DM) |
| Current Rating | 3 A, 270 mA |
| Electrical Life (Cycles) | 5000000 Cycles |
| Mechanical Life (Cycles) | 5000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Connector |
| Voltage Rating - AC | 50 VAC |
| Voltage Rating - DC | 50 V |
