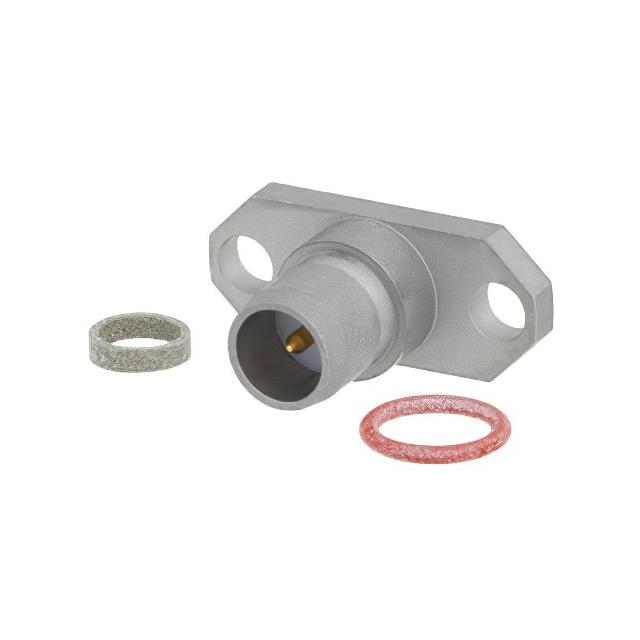

PE45345
ActivePasternack
BMA PLUG SLIDE-ON FIELD REPLACEA
PE45345
ActivePasternack
BMA PLUG SLIDE-ON FIELD REPLACEA
Description
General part information
PE45345
BMA Connector Plug, Male Pin 50 Ohms Panel Mount; Surface Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE45345 |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | BMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 22 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Insertion Loss | 0.14 dB |
| Mating Cycles | 1000 cycles |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Surface Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
| Voltage Rating | 350 V |
