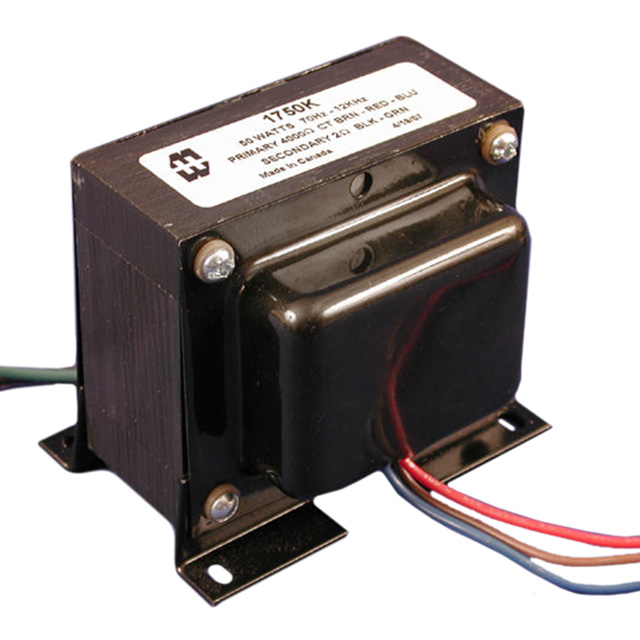

1750K
ActiveHammond Manufacturing
AUDIO TRANSFORMER 44.67:1 2000VRMS 89.43OHM PRIM. DCR 0.18OHM SEC. DCR 5 TERMINAL WIRE LEAD FLANGE MOUNT
1750K
ActiveHammond Manufacturing
AUDIO TRANSFORMER 44.67:1 2000VRMS 89.43OHM PRIM. DCR 0.18OHM SEC. DCR 5 TERMINAL WIRE LEAD FLANGE MOUNT
Description
General part information
1750K
4kCT Impedance Primary Ohms 2 Impedance Secondary Ohms 44.67:1 Audio Transformer 70Hz ~ 15kHz Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1750K |
|---|---|
| DC Resistance (DCR) - Primary (Max) | 46.28 Ohm |
| DC Resistance (DCR) - Primary (Min) | 43.16 Ohm |
| DC Resistance (DCR) - Secondary | 180 mOhm |
| Frequency Range (Max) | 15 kHz |
| Frequency Range (Min) | 70 Hz |
| Frequency Response Tolerance | 1 dB |
| Height - Seated (Max) | 3.516 in |
| Impedance - Primary (Ohms) | 4 kOhm |
| Impedance - Primary (Ohms) Code | CT |
| Impedance - Secondary (Ohms) | 2 Ohms |
| Mounting Type | Chassis Mount |
| Power Level | 50 W |
| Size / Dimension Length | 4.063 in |
| Size / Dimension Width | 3.125 in |
| Termination Style | Wire Leads |
| Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output |
| Turns Ratio - Primary | 44.67 |
| Turns Ratio - Secondary | 1 |
| Weight | 0.625 lb |
