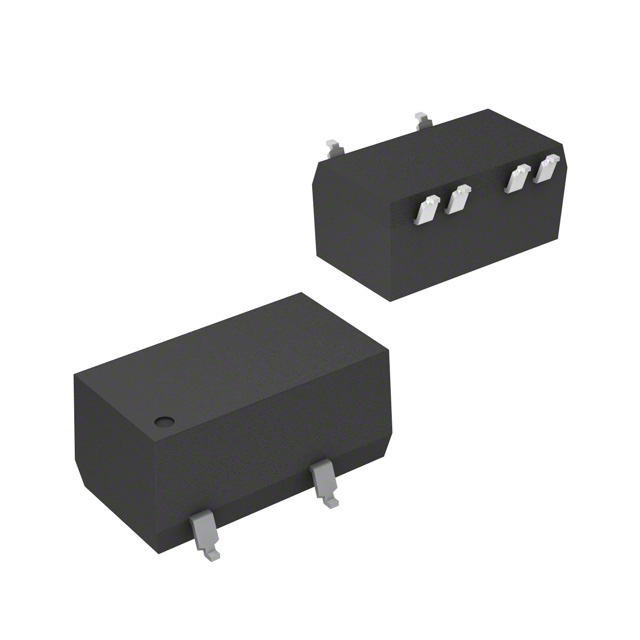

RSD-2409
ObsoleteRecom Power
DC DC CONVERTER +/-9V 1W
RSD-2409
ObsoleteRecom Power
DC DC CONVERTER +/-9V 1W
Description
General part information
RSD-2409
Isolated Module DC DC Converter 2 Output 9V -9V 56mA, 56mA 21.6V - 26.4V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | RSD-2409 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 56 mA |
| Efficiency | 78 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 6 Leads |
| Package Name | 10-SMD Module |
| Power (Watts) | 1 W |
| Size / Dimension Height | 0.29 in |
| Size / Dimension Length | 0.6 in |
| Size / Dimension Width | 0.32 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 26.4 V |
| Voltage - Input (Min) | 21.6 V |
| Voltage - Isolation | 1000 Vrms |
| Voltage - Output 1 | 9 V |
| Voltage - Output 2 | -9 V |
