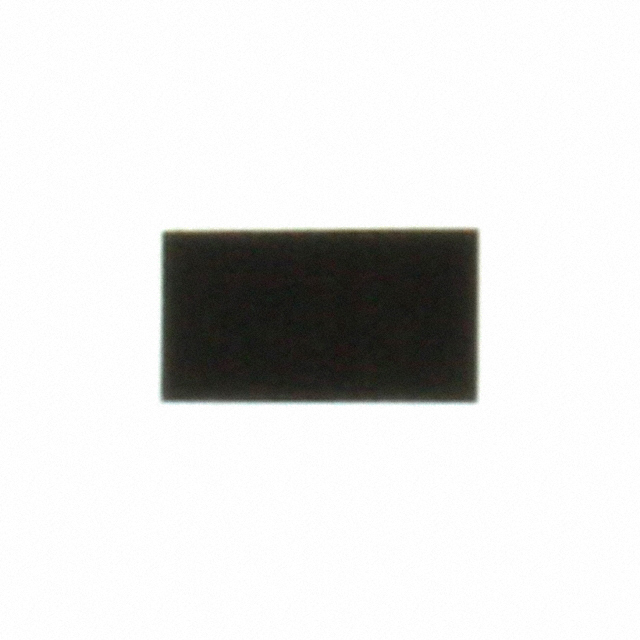

CPDU12V0U

Active

Comchip Technology

ESD SUPPRESSOR DIODE TVS UNI-DIR 12V 24VC 2-PIN SMD T/R

Search across all available documentation for this part.

Active

Comchip Technology

ESD SUPPRESSOR DIODE TVS UNI-DIR 12V 24VC 2-PIN SMD T/R

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount 0603/SOD-523F

Technical documentation and resources

No documents available

Specification	CPDU12V0U	CPDU12 Series

Applications	General Purpose	General Purpose
Bidirectional Channels	-	1
Capacitance @ Frequency	60 pF	12 - 60 pF
Current - Peak Pulse (10/1000µs)	5 A	1 - 5 A
Mounting Type	Surface Mount	Surface Mount
Package / Case	2-SMD, No Lead	2-SMD, No Lead
Power - Peak Pulse	120 W	25 - 120 W
Power Line Protection	False	False
Supplier Device Package	0603/SOD-523F	0603/SOD-523F
Type	Zener	Zener
Unidirectional Channels [custom]	1	1
Voltage - Breakdown (Min) [Min]	13.3 V	13 - 13.3 V
Voltage - Clamping (Max) @ Ipp [Max]	24 V	24 - 25 V
Voltage - Reverse Standoff (Typ)	12 V	12 V

Part	Voltage - Breakdown (Min) [Min]	Type	Mounting Type	Power - Peak Pulse	Package / Case	Applications	Current - Peak Pulse (10/1000µs)	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Capacitance @ Frequency	Unidirectional Channels [custom]	Bidirectional Channels [custom]
Comchip Technology CPDU12V0U-HF	13.3 V	Zener	Surface Mount	120 W	2-SMD, No Lead	General Purpose	5 A	0603/SOD-523F	24 V	12 V	60 pF	1
Comchip Technology CPDU12V-HF	13 V	Zener	Surface Mount	25 W	2-SMD, No Lead	General Purpose	1 A	0603/SOD-523F	25 V	12 V	12 pF		1
Comchip Technology CPDU12V0U	13.3 V	Zener	Surface Mount	120 W	2-SMD, No Lead	General Purpose	5 A	0603/SOD-523F	24 V	12 V	60 pF	1
