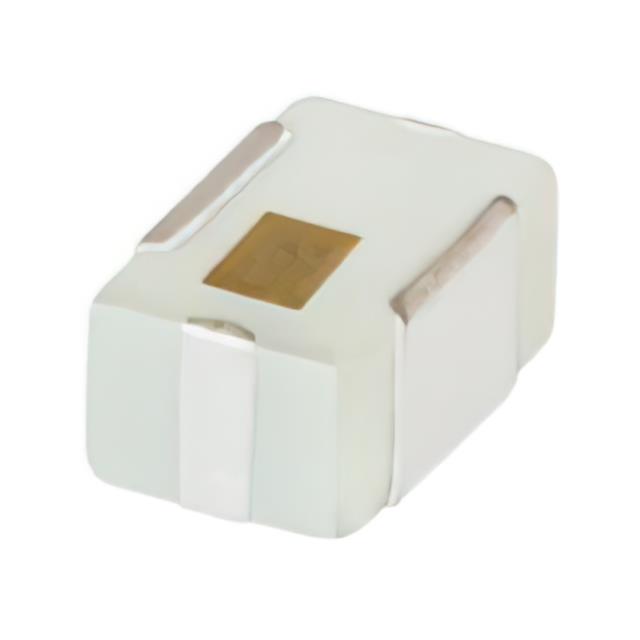

BFCG-252+
ActiveMini-Circuits
RF FILTER BAND PASS 2.45GHZ 4SMD
BFCG-252+
ActiveMini-Circuits
RF FILTER BAND PASS 2.45GHZ 4SMD
Description
General part information
BFCG-252+
2.45GHz Center Frequency Band Pass RF Filter (Radio Frequency) 100MHz Bandwidth 3.5dB 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | BFCG-252+ |
|---|---|
| Bandwidth | 100 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 2.45 GHz |
| Height (Max) | 0.041 in |
| Insertion Loss | 3.5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
