T4142412041-000
ActiveTE Connectivity AMP Connectors

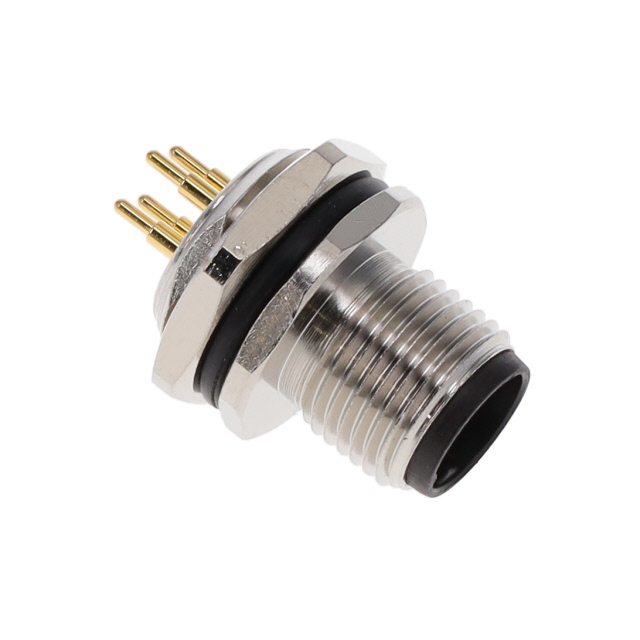

CONN RCPT MALE 4POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4142412041-000
ActiveTE Connectivity AMP Connectors
CONN RCPT MALE 4POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T4142412041-000 |
|---|---|
| Applications | Industrial |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | B |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.21 | |
| 10 | $ 3.69 | |||
| 25 | $ 3.59 | |||
| 50 | $ 3.51 | |||
| 100 | $ 3.40 | |||
T41424 Series
CONN RCPT MALE 4POS GOLD SOLDER
| Part | Shell Size - Insert | Insert Material | Applications | Shell Finish | Color | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Contact Finish - Mating | Mounting Type | Termination | Contact Material | Primary Material | Shell Material | Orientation | Number of Positions | Material Flammability Rating | Current Rating (Amps) | Shielding | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4142412041-000 | M12-4 | Polyamide (PA66), Nylon 6/6 | Industrial | Nickel | Silver | Male Pins, Receptacle | 3 µin | 0.076 µm | 250 VDC | 85 °C | -40 °C | IP67 - Dust Tight, Waterproof | Gold | Panel Mount, Through Hole | Solder | Copper Alloy | Metal | Copper Alloy | B | 4 | UL94 V-0 | 4 A | Unshielded | Bulkhead - Front Side Nut |
Description
General part information
T41424 Series
4 Position Circular Connector Receptacle, Male Pins Solder
