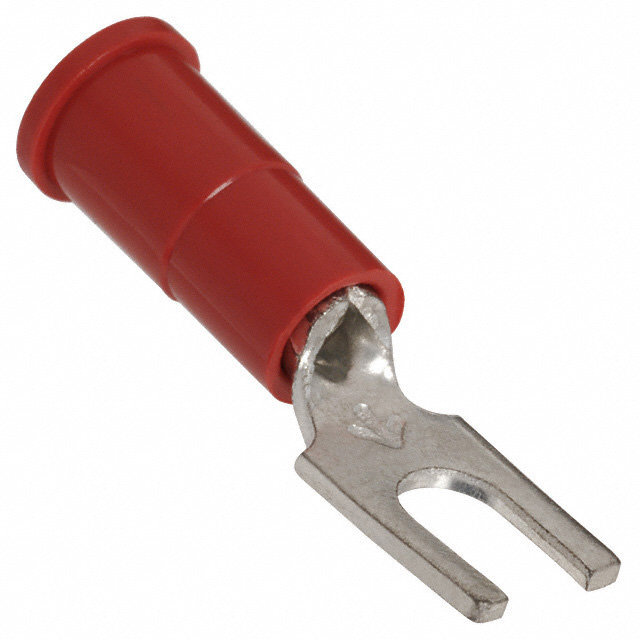

Specification	MNG18-6FB/SX-BOTTLE

Color	Red
Contact Finish	Tin
Contact Material	Copper, ETP
Insulation	Insulated
Insulation Diameter	0.145 in
Length - Overall	0.84 in
Length - Ring Center to Termination	0.25 in
Length - Termination	0.44 in
Material - Insulation	Polyamide, PA, Nylon
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Standard
Termination	Crimp
Width - Outer Edges	0.25 in
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	18 AWG

MNG18 Series

Part	Insulation Diameter	Gender	Terminal Type	Tab Width	Contact Finish	Tab Thickness	Color	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Length - Overall	Mounting Type	Insulation	Termination	Contact Material	Material - Insulation	Length - Termination	Length - Ring Center to Termination	Width - Outer Edges	Stud/Tab Size	Diameter - Barrel
3M Electronic Specialty MNG18-250DMX-BOTTLE	0.145 in	Male	Standard	0.25 in	Tin	0.032 in	Red	18 AWG	22 AWG	0.92 in	Free Hanging (In-Line)	Non-Mating End Insulated	Crimp	Copper ETP
3M Electronic Specialty MNG18-8FFBX-BOTTLE	0.145 in		Flanged		Tin		Red	18 AWG	22 AWG	0.84 in	Free Hanging (In-Line)	Insulated	Crimp	Copper ETP	Nylon PA Polyamide	0.44 in	0.25 in	0.3 in	8 Stud
3M Electronic Specialty MNG18-187DFIK	0.145 in	Female	Standard	0.187 in	Tin	0.02 in	Red	18 AWG	22 AWG	0.81 in	Free Hanging (In-Line)	Fully Insulated	Crimp	Brass
3M Electronic Specialty MNG18-10FFBK	0.145 in		Flanged		Tin		Red	18 AWG	22 AWG	0.84 in	Free Hanging (In-Line)	Insulated	Crimp	Copper ETP	Nylon PA Polyamide	0.44 in	0.25 in	0.3 in	10 Stud
3M Electronic Specialty MNG18-10FFBX-BOTTLE	0.145 in		Flanged		Tin		Red	18 AWG	22 AWG	0.84 in	Free Hanging (In-Line)	Insulated	Crimp	Copper ETP	Nylon PA Polyamide	0.44 in	0.25 in	0.3 in	10 Stud
3M Electronic Specialty MNG18-6FFB/SX-BOTTLE	0.145 in		Flanged		Tin		Red	18 AWG	22 AWG	0.84 in	Free Hanging (In-Line)	Insulated	Crimp	Copper ETP	Nylon PA Polyamide	0.44 in	0.25 in	0.25 in	6 Stud
3M Electronic Specialty MNG18-4FLX-BOTTLE	0.145 in		Snap Spring		Tin		Red	18 AWG	22 AWG	0.87 in	Free Hanging (In-Line)	Insulated	Crimp	Copper ETP	Nylon PA Polyamide	0.44 in	0.25 in	0.25 in	4 Stud
3M Electronic Specialty MNG18-8FX-BOTTLE	0.145 in		Standard		Tin		Red	18 AWG	22 AWG	0.73 in	Free Hanging (In-Line)	Insulated	Crimp	Copper ETP	Nylon PA Polyamide	0.44 in	0.29 in	0.34 in	8 Stud
3M Electronic Specialty MNG18-156DMK-A	0.15 in		Male Pin (Plug)		Tin		Red	18 AWG	22 AWG	0.87 in		Non-Mating End Insulated	Crimp	Brass	Nylon PA Polyamide					0.156 in
3M Electronic Specialty MNG18-4FB/SK	0.145 in		Standard		Tin		Red	18 AWG	22 AWG	0.84 in	Free Hanging (In-Line)	Insulated	Crimp	Copper ETP	Nylon PA Polyamide	0.44 in	0.25 in	0.25 in	4 Stud
