1717112-2
ActiveTE Connectivity AMP Connectors

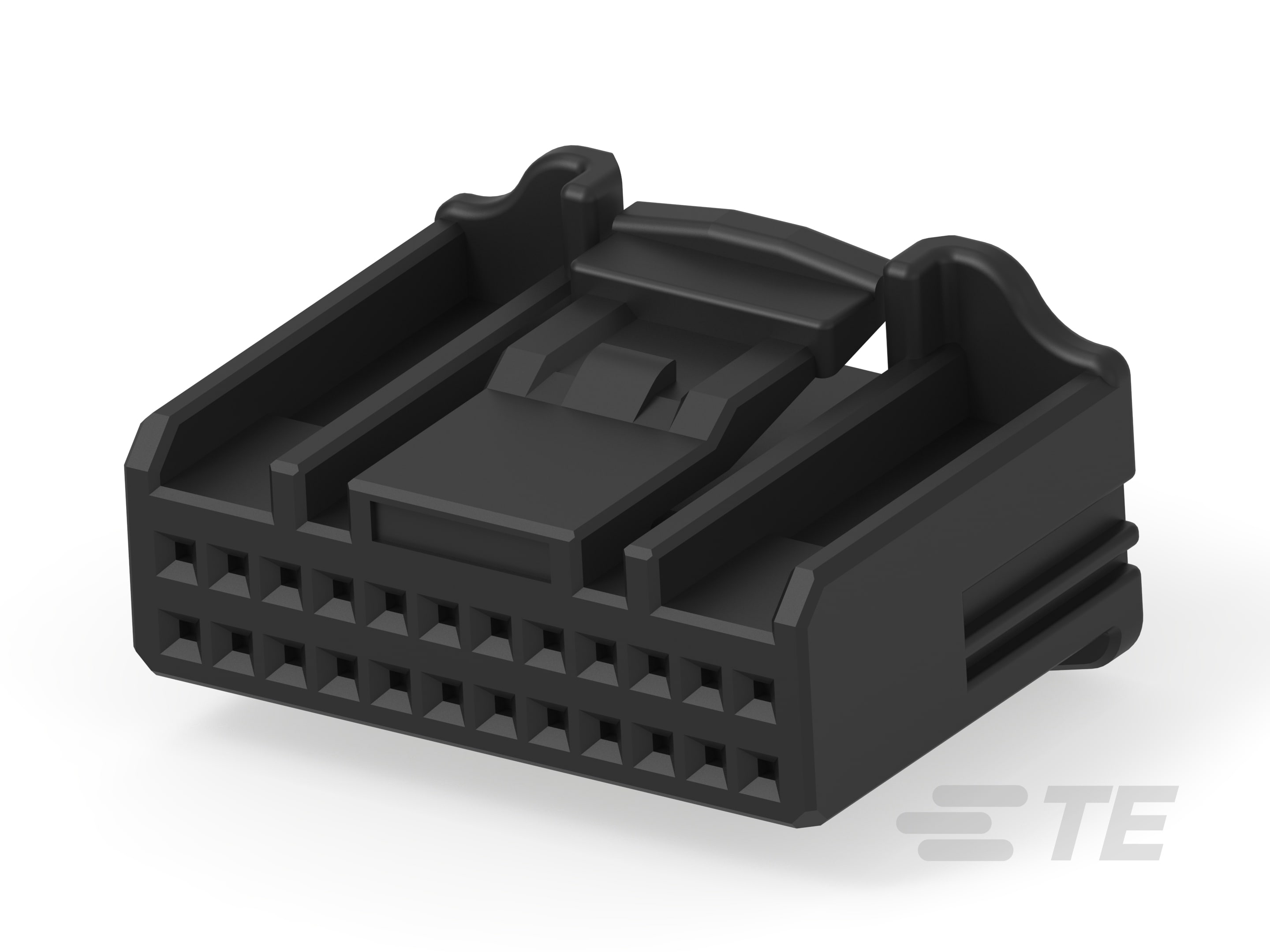

CONN HOUSING PL 24 POS 2.2MM CRIMP ST CABLE MOUNT BLACK BAG
1717112-2
ActiveTE Connectivity AMP Connectors
CONN HOUSING PL 24 POS 2.2MM CRIMP ST CABLE MOUNT BLACK BAG
Description
General part information
0.64/025 Connector System Series
24 Position Housing, Housing for Female Terminals, Wire-to-Board / Wire-to-Device / Wire-to-Wire, 0.64/025 Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 1717112-2 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 24 pos |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.087 in |
| Row Spacing | 0.118 in |
