200000049
ActiveMcGill Microwave Systems
DPF 23/6 N
200000049
ActiveMcGill Microwave Systems
DPF 23/6 N
Description
General part information
200000049

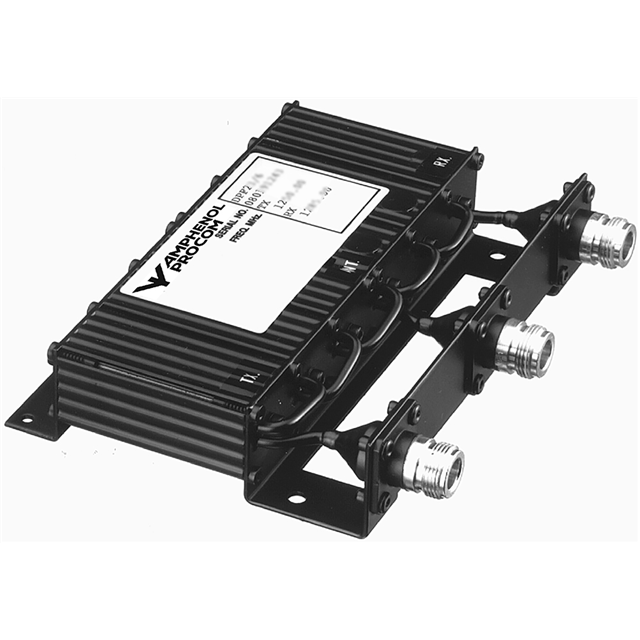

RF ANTENNA N Type Female Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 200000049 |
|---|---|
| Frequency (Center/Band) | 1.27 GHz |
| Frequency Bands (High) | 1.3 MHz |
| Frequency Bands (Low) | 1.24 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.3 GHz |
| Frequency Range (Min) | 1.24 GHz |
| Height (Max) | 1.3 in |
| Mounting Type | Chassis Mount |
| Number of Bands | 1 |
| Package / Case | Module |
| Power - Max | 50 VA |
| Termination | N Type Female |
| Type | Duplexer |
| VSWR | 1.5 |
