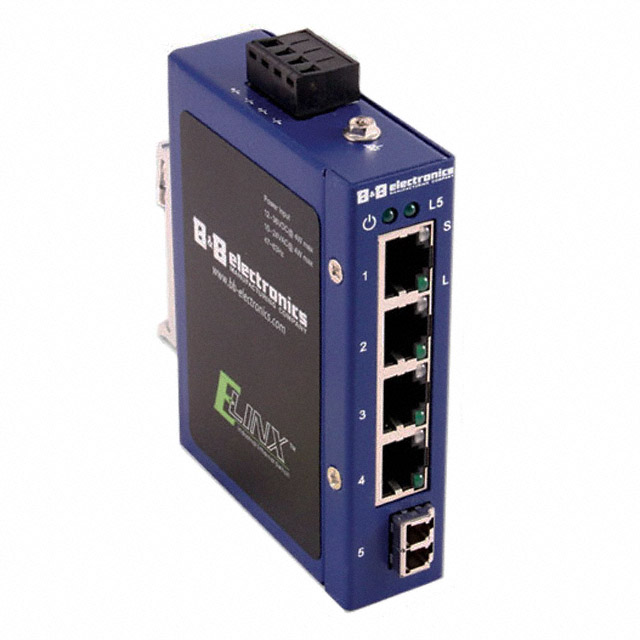

BB-ESW105-SL
ObsoleteAdvantech Corporation
NETWORK SWITCH-UNMANAGED 5 PORT
BB-ESW105-SL
ObsoleteAdvantech Corporation
NETWORK SWITCH-UNMANAGED 5 PORT
Description
General part information
BB-ESW105-SL
Network Switch - Unmanaged 5 Ports IP30
Technical Specifications
Parameters and characteristics for this part
| Specification | BB-ESW105-SL |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ45, LC |
| Copper Ports | 4 |
| Copper Type | 10/100 |
| Fiber Mode | Singlemode |
| Fiber Ports | 1 |
| Fiber Type | 100BASE-FX |
| Ingress Protection | IP30 |
| Mounting Type | DIN Rail |
| Number of Ports | 5 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Type | Switch - Unmanaged |
| Voltage - Input (Range 1) Maximum | 36 VDC |
| Voltage - Input (Range 1) Minimum | 12 V |
| Voltage - Input (Range 2) Maximum | 24 VAC |
| Voltage - Input (Range 2) Minimum | 10 V |
