3-1565081-4
ActiveTE Connectivity AMP Connectors

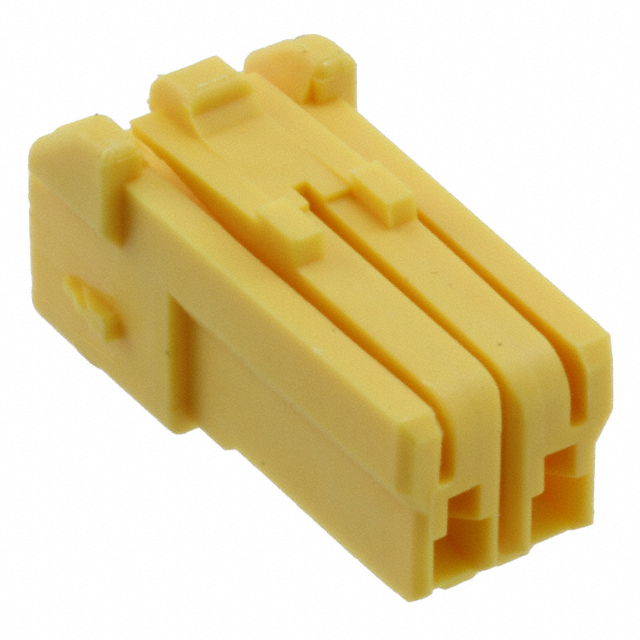

GRACE INERTIA CONNECTOR 3.5 2P
3-1565081-4
ActiveTE Connectivity AMP Connectors
GRACE INERTIA CONNECTOR 3.5 2P
Description
General part information
GRACE INERTIA 3.5 Series
2 Position, Plug, Housing, Crimp, Wire-to-Wire, UL 94V-0, 3.5 mm [.138 in] Centerline, 1 Row, 300 VAC, Wire & Cable, Power & Signal, GRACE INERTIA 3.5
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-1565081-4 |
|---|---|
| Color | Yellow |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.138 in |
