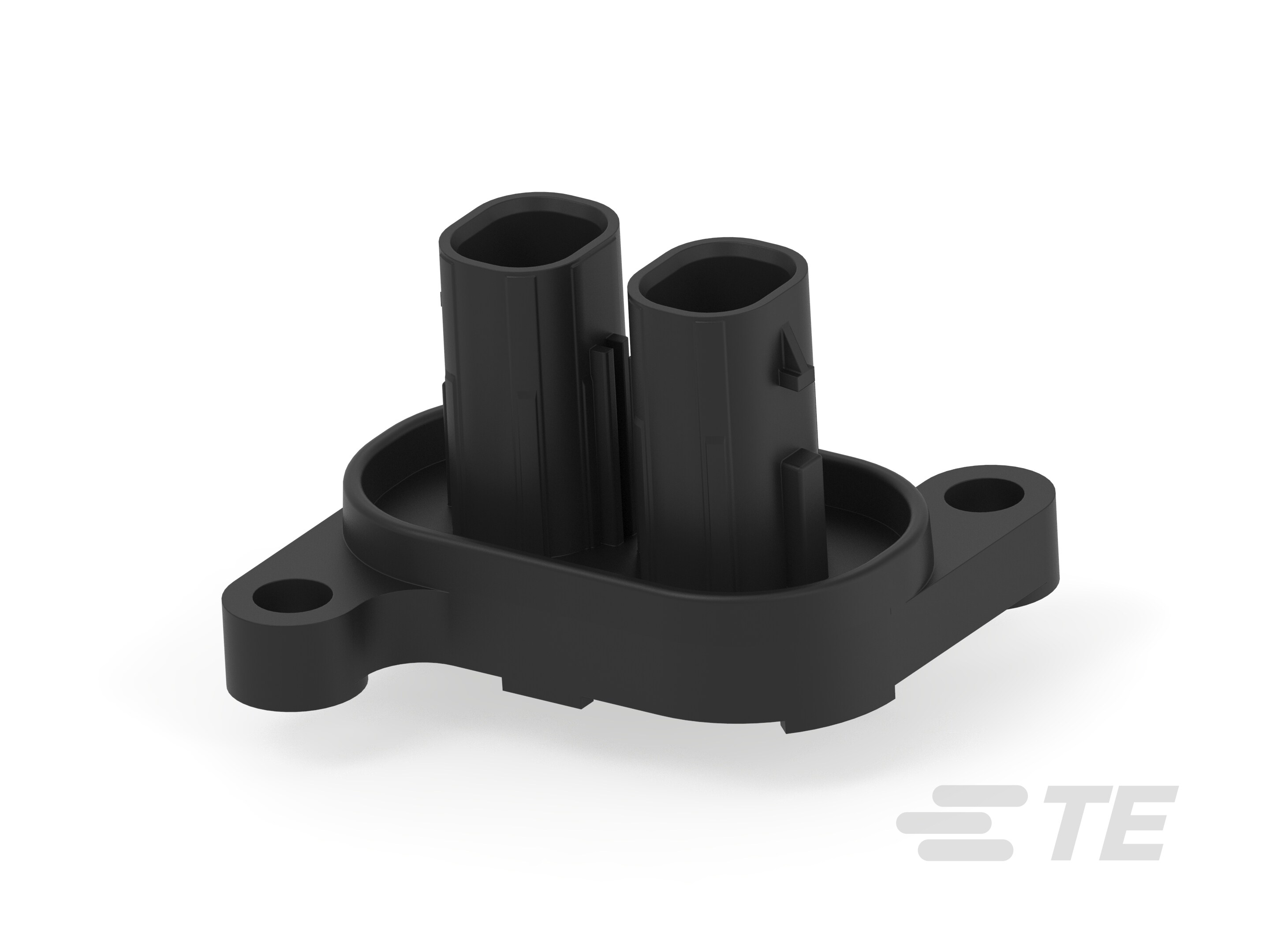

2PORT,HYBRID,HDR ASSY,180DEG,COD A,COD B-2366735-1

2366735-1

Active
TE Connectivity AMP Connectors

2PORT,HYBRID,HDR ASSY,180DEG,COD A,COD B

Find alt
2PORT,HYBRID,HDR ASSY,180DEG,COD A,COD B-2366735-1

2366735-1

Active
TE Connectivity AMP Connectors

2PORT,HYBRID,HDR ASSY,180DEG,COD A,COD B

Find alt

Description

General part information

2366735-1

Vertical, Wire-to-Board, 4 Position, 1 Rows, 2.54mm [.1in] Centerline, Silver (Ag), Sealable, Printed Circuit Board, 1A Contact Current Rating (Max)

Technical Specifications

Parameters and characteristics for this part

Specification2366735-1
Connector TypeHeader
Contact Finish - MatingSilver
Contact MaterialCopper Alloy
Contact ShapeRectangular
Contact TypeMale Pin
Current Rating1 A
Fastening TypePush-Pull
FeaturesMounting Flange
Insulation ColorBlack
Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled
Material Flammability RatingUL94 HB
Mounting TypePanel Mount, Through Hole
Number of Positions4
Number of Positions LoadedAll
Number of Rows2
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Row Spacing - Mating0.1 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationSolder
