Description
General part information

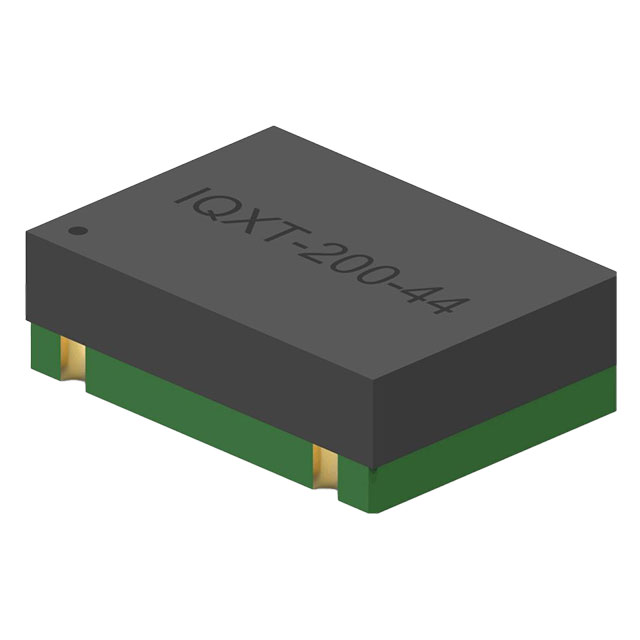

LFTVXO085760
19.2 MHz VCTCXO HCMOS Oscillator 3.3V Amplitude Control 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | LFTVXO085760 |
|---|---|
| Absolute Pull Range (Maximum) | 8 ppm |
| Absolute Pull Range (Minimum) | -8 ppm |
| Base Resonator | Crystal |
| Current - Supply (Max) | 10 mA |
| Frequency | 19.2 MHz |
| Frequency Stability | 50 ppb |
| Function | Amplitude Control |
| Height - Seated (Max) | 0.094 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | VCTCXO |
| Voltage - Supply | 3.3 V |
