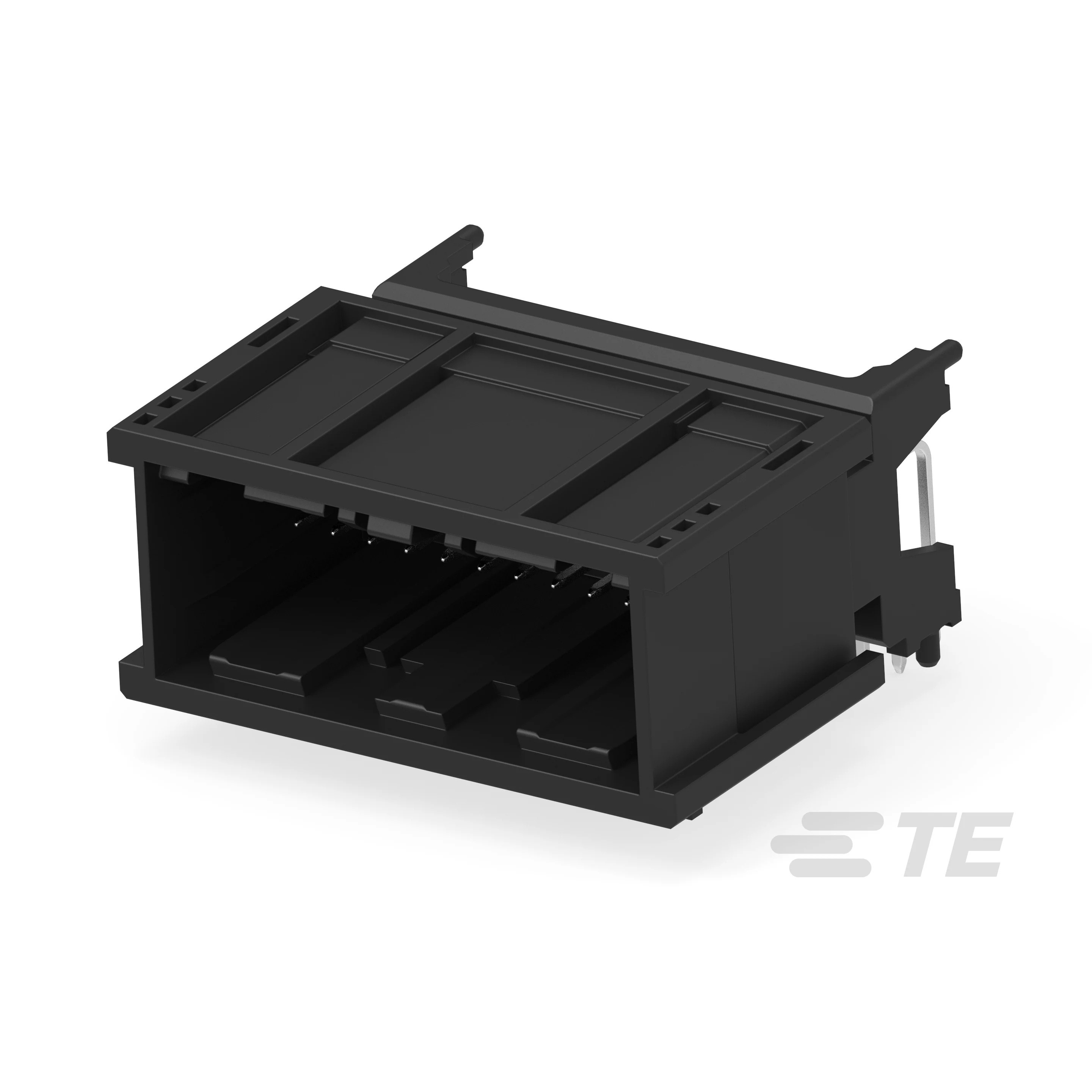

Specification	4-2177367-3

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1.6 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Black
Insulation Height	0.667 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.071 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	12 V
