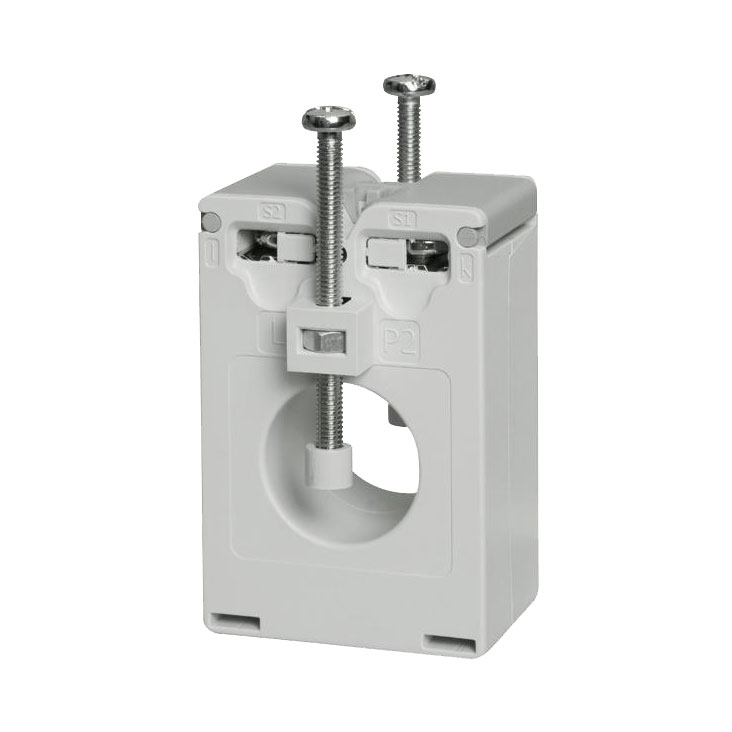

CTD1X805AXXX
ActiveCarlo Gavazzi Inc.
CURRENT TRANSFORMER, 80A, 48HZ TO 62HZ ROHS COMPLIANT: YES
CTD1X805AXXX
ActiveCarlo Gavazzi Inc.
CURRENT TRANSFORMER, 80A, 48HZ TO 62HZ ROHS COMPLIANT: YES
Description
General part information
CTD1X805AXXX
Current Sense Transformer
Technical Specifications
Parameters and characteristics for this part
| Specification | CTD1X805AXXX |
|---|---|
| Current Rating | 80 A |
| Frequency Range (Max) | 62 Hz |
| Frequency Range (Min) | 48 Hz |
| Height - Seated (Max) | 2.567 in |
| Mounting Type | DIN Rail |
| Size / Dimension Length | 1.811 in |
| Size / Dimension Width | 1.732 in |
| Termination Style | Terminal Block |
| Type | Non-Invasive (Solid Core) |
