Description
General part information

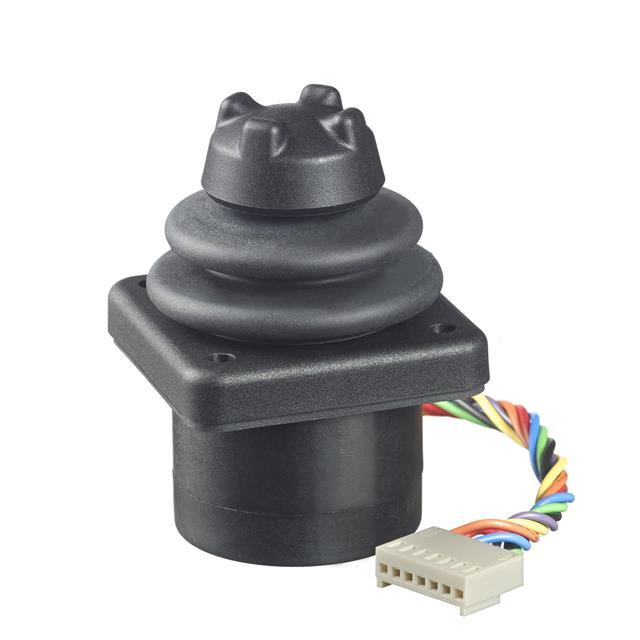

XS140SCA12A62000
Thumbstick, 2 - Axis Analog (Hall Effect) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | XS140SCA12A62000 |
|---|---|
| Actuator Type | Castle |
| Axis Count | 2 Axis |
| Features | Black Actuator |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Panel Mount |
| Operating Force | 133 gf |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output | Analog (Hall Effect) |
| Panel Cutout Diameter | 39 mm |
| Panel Cutout Shape | Circular |
| Switch Function | 4-Way Directional |
| Termination Style | Wire Leads with Connector |
| Type | 2 - Axis, Thumbstick |
| Voltage - Supply (Maximum) | 5 V |
| Voltage - Supply (Minimum) | 0 V |
