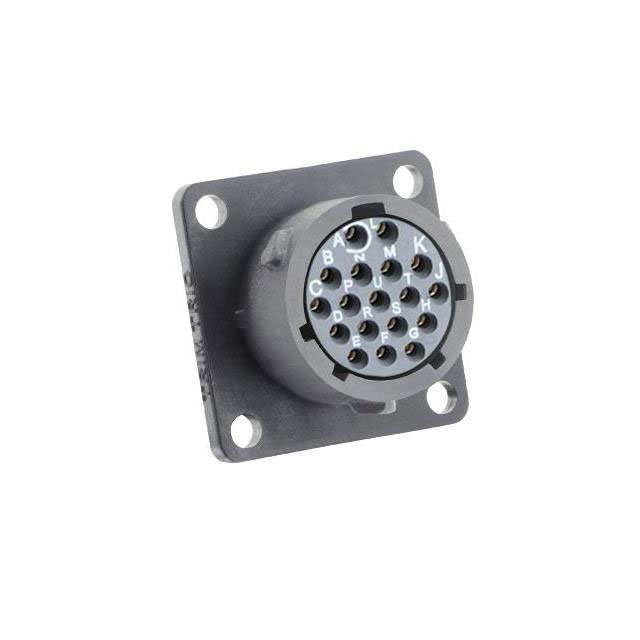

Specification	UTSX014D18S

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating	4 A
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	Neoprene
Material Flammability Rating	UL94 HB
Mounting Feature	Flange
Mounting Type	Panel Mount, Through Hole
Number of Positions	18
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Primary Material	Plastic
Shell Material	Nylon, Polyamide (PA)
Shell Size - Insert (Maximum)	18
Shell Size - Insert (Minimum)	14 S
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 V
