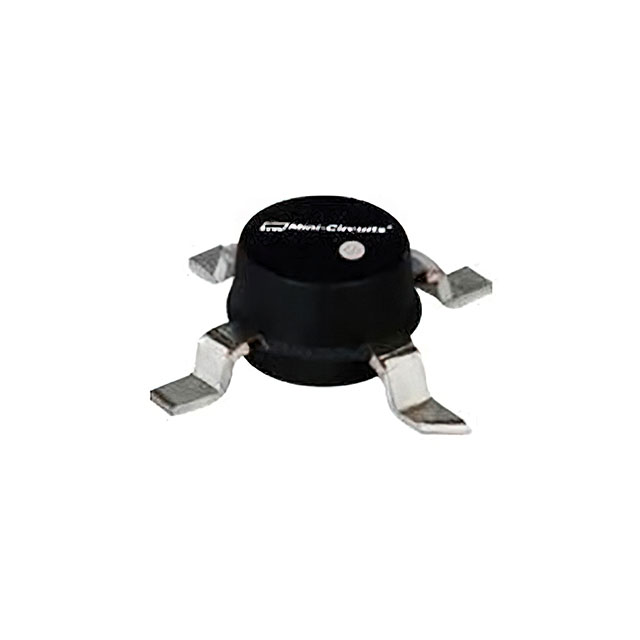

MAR-4SM+
ActiveMini-Circuits
IC RF AMP CELLULAR 0HZ-1GHZ 4SMD
MAR-4SM+
ActiveMini-Circuits
IC RF AMP CELLULAR 0HZ-1GHZ 4SMD
Description
General part information
MAR-4SM+
RF Amplifier IC Cellular 0Hz ~ 1GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | MAR-4SM+ |
|---|---|
| Current - Supply | 50 mA |
| Frequency (Max) | 1 GHz |
| Frequency (Min) | 0 Hz |
| Gain | 8 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 6 dB |
| P1dB | 12.5 dBm |
| Package / Case | 4-SMD, Gull Wing |
| RF Type | Cellular |
| Test Frequency | 1 GHz |
| Voltage - Supply | 5.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
