54-411
ActiveNTE Electronics, Inc

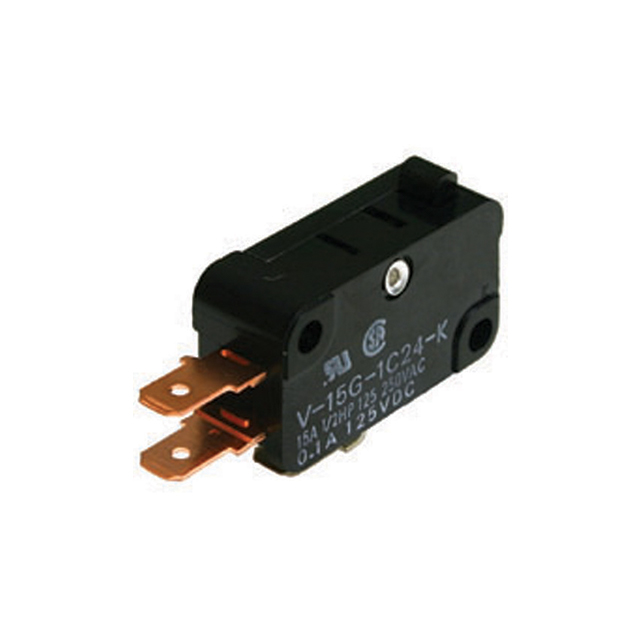

SWITCH SNAP ACTION SPDT 10A 250V
54-411
ActiveNTE Electronics, Inc
SWITCH SNAP ACTION SPDT 10A 250V
Description
General part information
54-411
Switch SPDT
Technical Specifications
Parameters and characteristics for this part
| Specification | 54-411 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating | 10 A, 100 mA |
| Differential Travel (Linear) | 0.01 in |
| Operating Force | 0.1 kgf |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Overtravel (Linear) | 0.05 in |
| Pretravel (Length) | 0.05 in |
| Quick Connect Size (0.187") | 0.187 in |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
