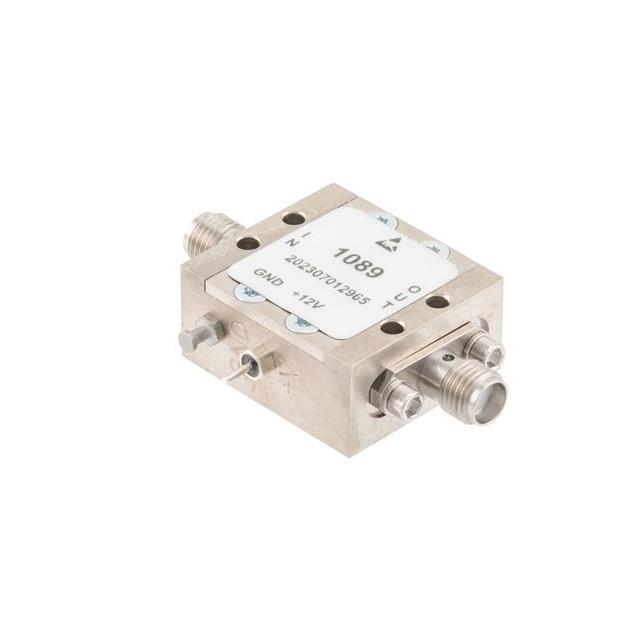

PE15A1089
ActivePasternack
1.0 DB NF LOW NOISE AMPLIFIER, O
PE15A1089
ActivePasternack
1.0 DB NF LOW NOISE AMPLIFIER, O
Description
General part information
PE15A1089
RF Amplifier IC General Purpose 1GHz ~ 3.5GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | PE15A1089 |
|---|---|
| Current - Supply | 115 mA |
| Frequency (Max) | 3.5 GHz |
| Frequency (Min) | 1 GHz |
| Gain | 43 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 1 dB |
| P1dB | 18 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 7 V |
