6560-0139-12
ActiveEncitech Connectors AB
D-SUB BACKSHELL, 15-WAY, FULL ME
6560-0139-12
ActiveEncitech Connectors AB
D-SUB BACKSHELL, 15-WAY, FULL ME
Description
General part information
6560-0139-12

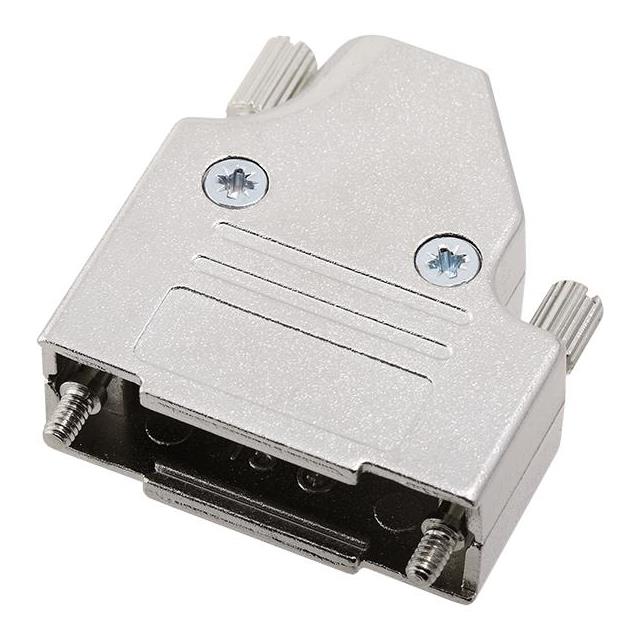

15 Position Two Piece Backshell Connector Silver 45° Shielded
Technical Specifications
Parameters and characteristics for this part
| Specification | 6560-0139-12 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit Angle | 45 ° |
| Cable Type | Round |
| Color | Silver |
| Compatible D-Sub Size | 15pos, HD26pos |
| Compatible Shell Size | A |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Cable Clamp, Grommets |
| Material | Zinc |
| Number of Positions | 15 |
| Plating | Nickel |
| Primary Material | Metal |
| Shielding | Shielded |
