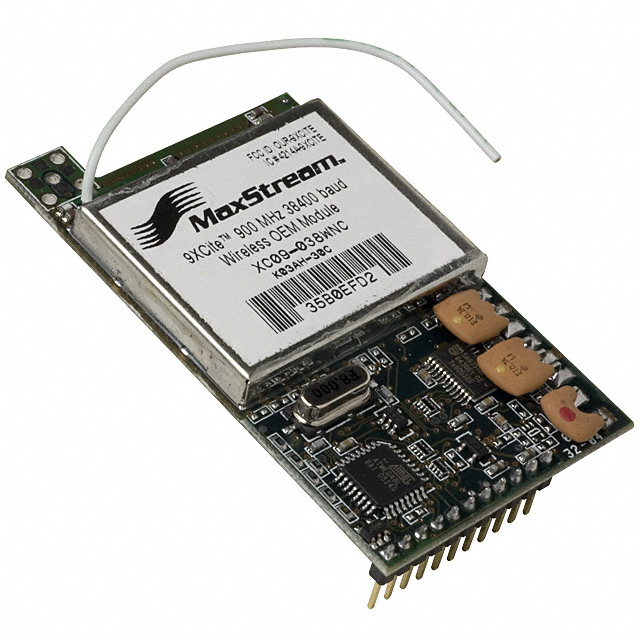

XC09-038WNC
ObsoleteDigi International
RF TXRX MOD ISM<1GHZ WIRE ANT TH
XC09-038WNC
ObsoleteDigi International
RF TXRX MOD ISM<1GHZ WIRE ANT TH
Description
General part information
XC09-038WNC
General ISM < 1GHz Transceiver Module 900MHz Integrated, Wire Antenna Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | XC09-038WNC |
|---|---|
| Antenna Type | Integrated, Wire Antenna |
| Current - Receiving (Max) | 55 mA |
| Current - Receiving (Min) | 45 mA |
| Current - Transmitting | 55 mA |
| Data Rate | 37.5 kbps |
| Frequency | 900 MHz |
| Modulation | FSK, FHSS |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | Module |
| Power - Output | 6 dBm |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -108 dBm |
| Serial Interfaces | UART |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 2.85 V |
