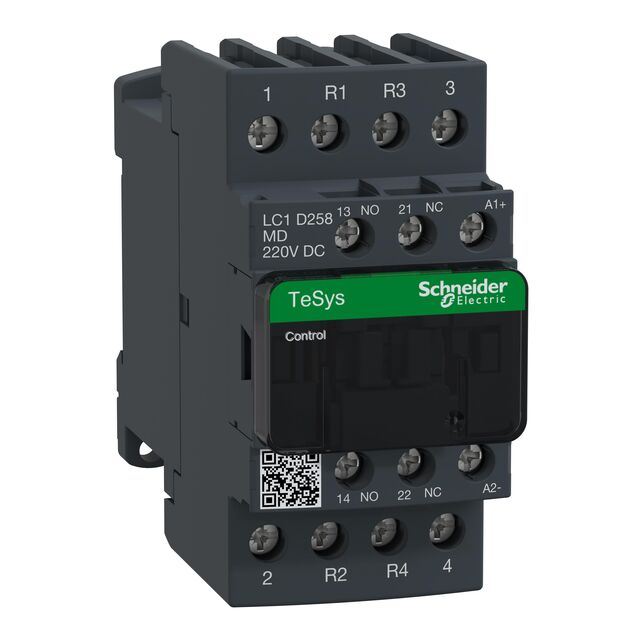

LC1D258MD
ActiveSCHNEIDER ELECTRIC
CONTACTOR 600VAC 25AMP IEC OPTIONS ROHS COMPLIANT: YES
LC1D258MD
ActiveSCHNEIDER ELECTRIC
CONTACTOR 600VAC 25AMP IEC OPTIONS ROHS COMPLIANT: YES
Description
General part information
LC1D258MD
CONTACTOR 600VAC 25AMP IEC OPTIONS ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D258MD |
|---|---|
| Coil Voltage | 220 V |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 40 A |
| Features | Diode, Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 154 VDC |
| Must Release Voltage | 22 VDC |
| Operate Time | 72.45 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 4 |
| Release Time | 24 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
