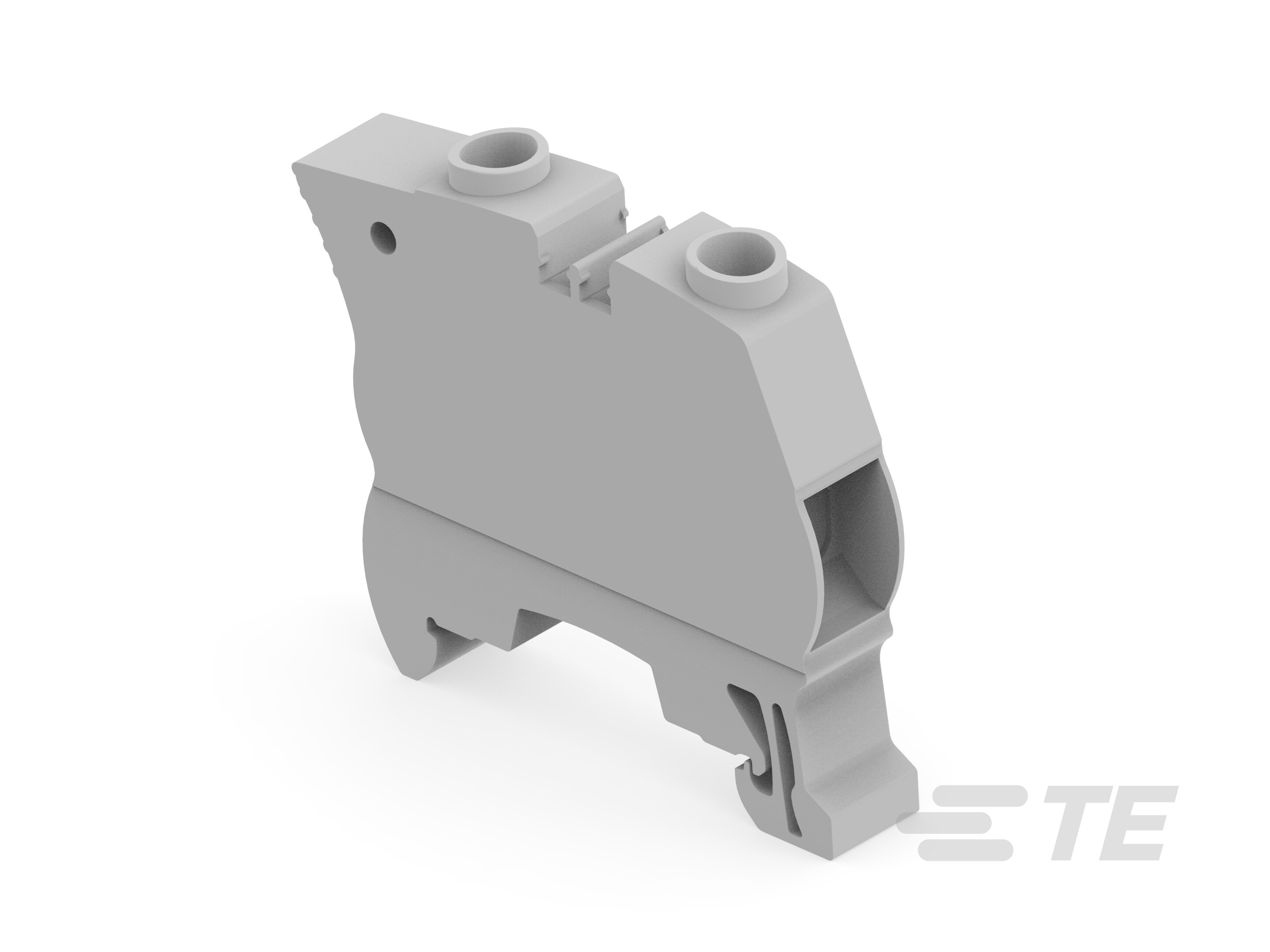

1SNK510010R0000
ActiveTE Connectivity AMP Connectors
POW SNK SCREW
1SNK510010R0000
ActiveTE Connectivity AMP Connectors
POW SNK SCREW
Description
General part information
1SNK510010R0000
POW SNK SCREW
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SNK510010R0000 |
|---|---|
| Color | Gray |
| Current - IEC | 76 A |
| Current - UL | 67 A |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Terminal Width | 10 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 1000 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 4 AWG |
| Wire Gauge or Range - mm² (Maximum) | 16 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.5 mm² |
