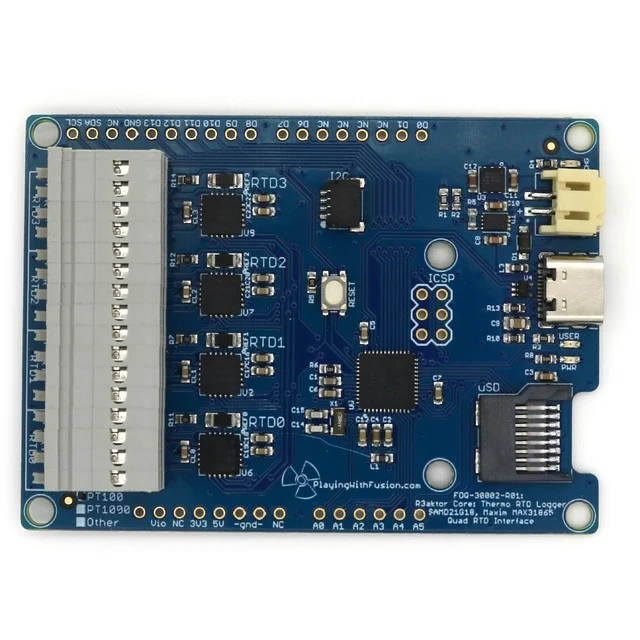

FDQ-30002-PT1K
ActivePlaying With Fusion, Inc
PT1000 RTD ARDUINO CORE
FDQ-30002-PT1K
ActivePlaying With Fusion, Inc
PT1000 RTD ARDUINO CORE
Description
General part information
FDQ-30002-PT1K
PT1000 RTD ARDUINO CORE
Technical Specifications
Parameters and characteristics for this part
| Specification | FDQ-30002-PT1K |
|---|---|
| Bus Connection | USB C |
| Front Connection | Spring Terminal |
| Function | Temperature |
| Input Resolution | 15 Bits |
| Input Temperature (Max) | 800 °C |
| Input Temperature (Min) | -200 °C |
| Input Types | Analog, Digital |
| Number of Analog Inputs | 16 |
| Number of Digital Inputs | 29 |
| Sampling Rate (Per Second) | 10 Hz |
| Type | Datalogger |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
