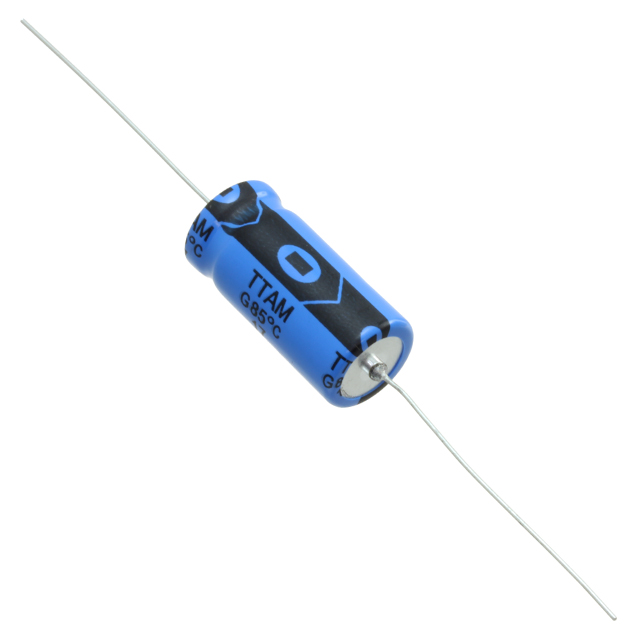

476TTA500ARZ
ActiveCornell Dubilier Knowles
CAP ALUM 47UF 20% 500V AXIAL TH
476TTA500ARZ
ActiveCornell Dubilier Knowles
CAP ALUM 47UF 20% 500V AXIAL TH
Description
General part information
476TTA500ARZ
47 µF 500 V Aluminum Electrolytic Capacitors Axial, Can 8.8184Ohm @ 120Hz 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 476TTA500ARZ |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 µF |
| ESR (Equivalent Series Resistance) | 8.8184 Ohm |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 443.7 mA, 290 mA |
| Size / Dimension Diameter | 0.709 in |
| Size / Dimension Length | 1.575 in |
| Tolerance | 20 % |
| Voltage - Rated | 500 V |
