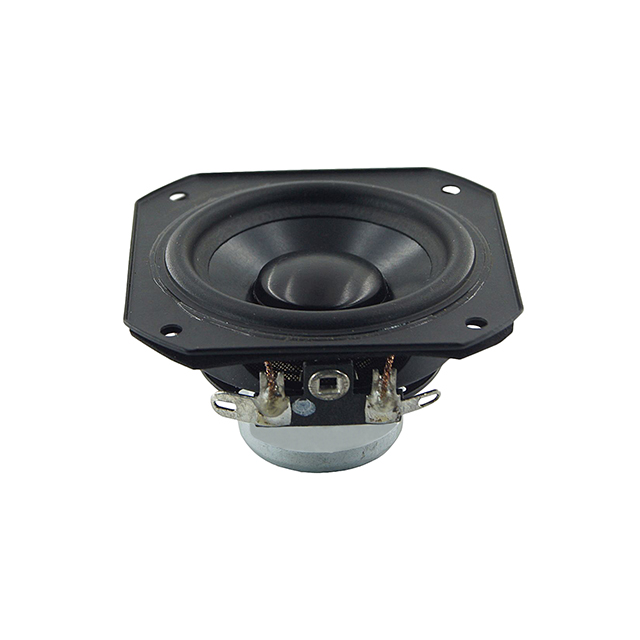

TA6FC00-08
ObsoletePeerless by Tymphany
SPEAKR 7.19OHM 10W TOP PT 82.2DB
TA6FC00-08
ObsoletePeerless by Tymphany
SPEAKR 7.19OHM 10W TOP PT 82.2DB
Description
General part information
TA6FC00-08
7.19 Ohms Full Range Speaker 10 W 100 Hz ~ 20 kHz Top Round, Square Frame
Technical Specifications
Parameters and characteristics for this part
| Specification | TA6FC00-08 |
|---|---|
| Efficiency - dBA | 82.2 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 179.65 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 100 Hz |
| Height - Seated (Max) | 1.371 in |
| Impedance | 7.19 Ohms |
| Material - Cone | Aluminum (AI) |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Rated | 10 W |
| Shape | Round, Square Frame |
| Size / Dimension Length | 2.323 in |
| Size / Dimension Width | 2.323 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Full Range |
