1792287
ObsoletePhoenix Contact

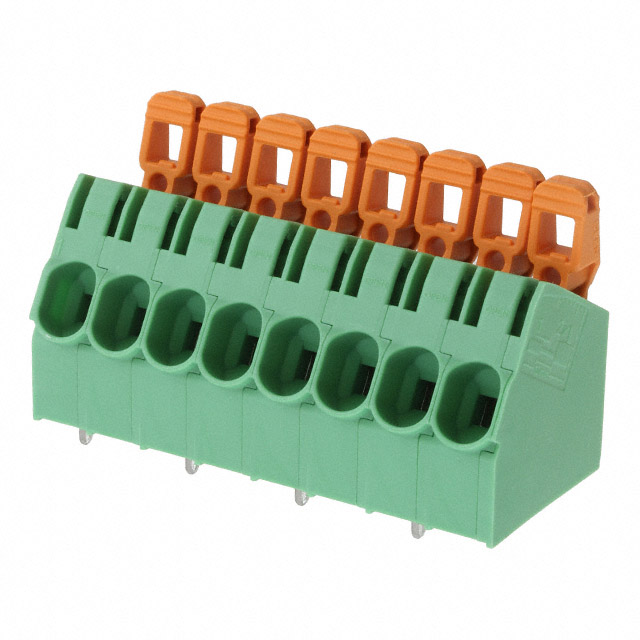

TERM BLOCK 8POS 30DEG 7.5MM PCB
1792287
ObsoletePhoenix Contact
TERM BLOCK 8POS 30DEG 7.5MM PCB
Description
General part information
1792287
8 Position Wire to Board Terminal Block 30° (150°) Angle with Board 0.295" (7.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1792287 |
|---|---|
| Color | Green |
| Current | 41 A |
| Features | Lever Actuated |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation (Angle) | 30 ° |
| Mating Orientation (Angle) (Alternate) | 150 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.295 in |
| Positions Per Level | 8 |
| Voltage | 1000 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
