Description
General part information
61030012118

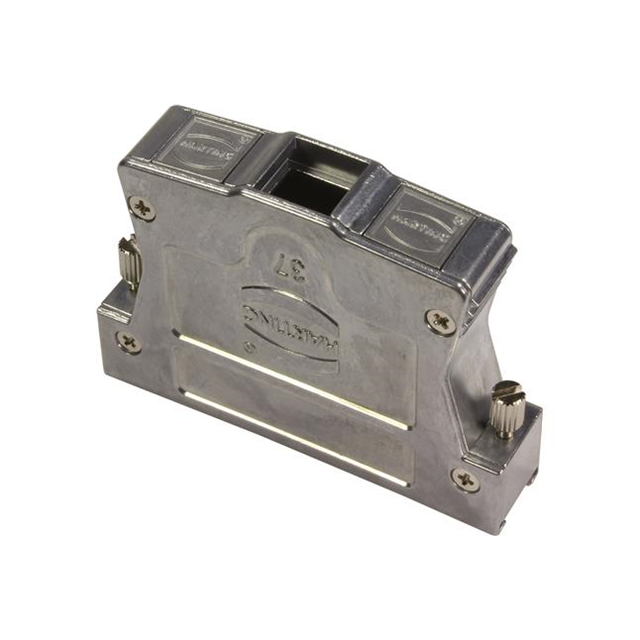

37 Position One Piece Backshell Connector Silver 180° Shielded
Technical Specifications
Parameters and characteristics for this part
| Specification | 61030012118 |
|---|---|
| Accessory Type | One Piece Backshell |
| Cable Exit Angle | 180 ° |
| Cable Type | Flat |
| Color | Silver |
| Compatible D-Sub Size | HD62pos, 37pos |
| Compatible Shell Size | C |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware |
| Material | Zinc Die Cast |
| Number of Positions | 37 pos |
| Plating | Nickel |
| Primary Material | Metal |
| Shielding | Shielded |
