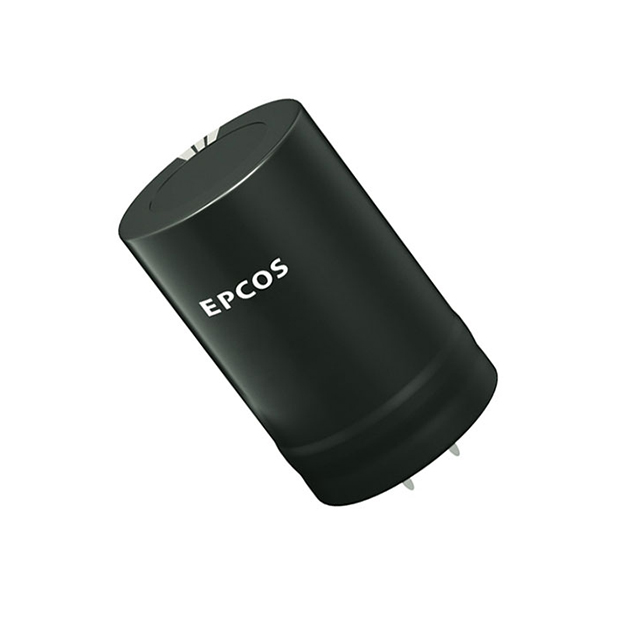

Specification	B43544F9397M067

Applications	General Purpose
Capacitance	390 µF
ESR (Equivalent Series Resistance)	160 mOhm
Impedance	220 mOhm
Lead Spacing	0.394 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Package Leads	3 Leads
Package Name	Radial, Can - Snap-In
Polarization	Polar
Ripple Current	1.96 A
Tolerance	20 %
Voltage - Rated	400 V
