Description

General part information

CKG45NC0G2J663J500JH

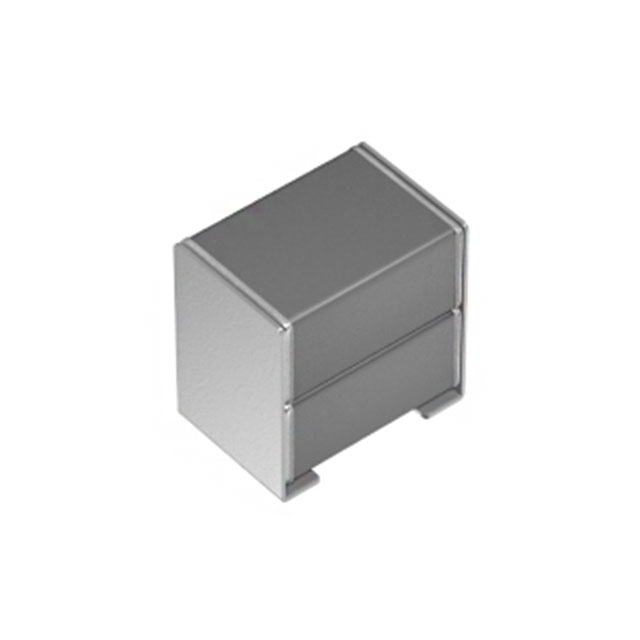

0.066 µF ±5% 630V Ceramic Capacitor C0G, NP0 Stacked SMD, 2 J-Lead

Technical Specifications

Parameters and characteristics for this part

SpecificationCKG45NC0G2J663J500JH
ApplicationsSMPS Filtering, Boardflex Sensitive
Capacitance0.066 µF
FeaturesLow ESL
Lead StyleJ-Lead
Mounting TypeSurface Mount, MLCC
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Package / Case2 J-Lead, Stacked SMD
Size / Dimension Length0.197 in
Size / Dimension Width0.138 in
Temperature CoefficientNP0, C0G
Thickness (Max)0.217 in
Tolerance5 %
Voltage - Rated630 V
