SH-21
ObsoletePanasonic Industrial Automation Sales
SENSOR THROUGH-BEAM 300MM
SH-21
ObsoletePanasonic Industrial Automation Sales
SENSOR THROUGH-BEAM 300MM
Description
General part information
SH-21

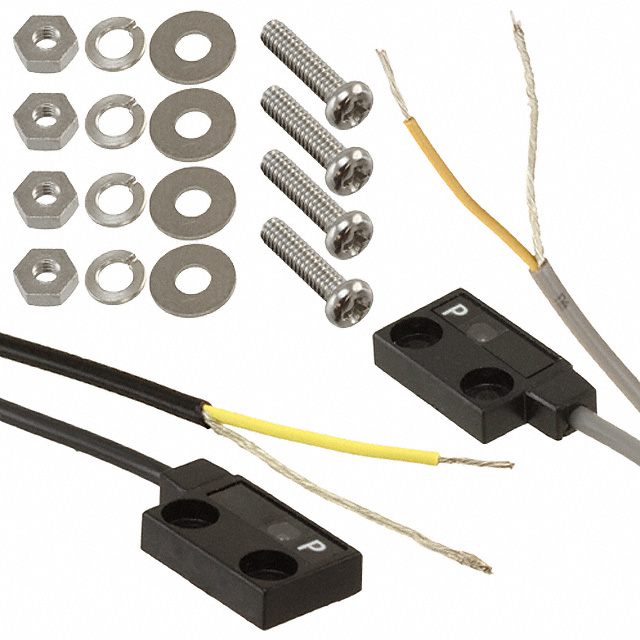

Through-Beam Optical Sensor 11.811" (300mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | SH-21 |
|---|---|
| Adjustment Type | Adjustable |
| Cable Length | 118.1 in |
| Connection Method | Cable |
| Ingress Protection | IP62 |
| Light Source | Infrared |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Sensing Distance | 11.811 " |
| Sensing Method | Through-Beam |
