Description
General part information
ANT-ELE-S01-012

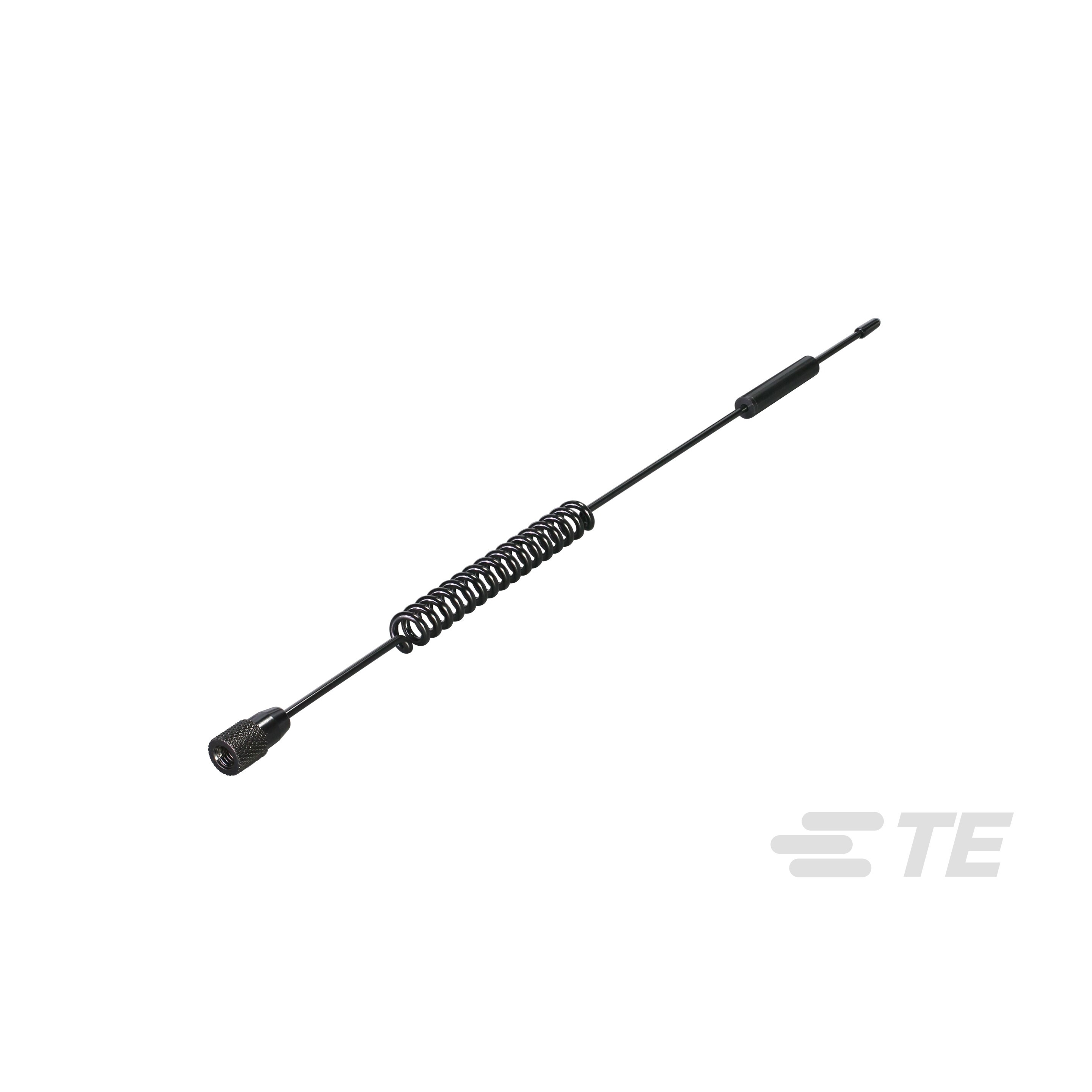

Terminal/Duck Antenna, Multi Band, Cellular, External Mount, Stud/Screw/Lug Mount, M5, Omnidirectional, Single Port, 3 < 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-ELE-S01-012 |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | General Purpose |
| Frequency (Band) | 1.85 GHz |
| Frequency (Center) | 892 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz, 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz, 1 GHz |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 824 MHz |
| Frequency Range (Band 2) Maximum | 1.99 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | 3.2 dBi, 4.4 dBi |
| Height (Max) | 10.27 in |
| Mounting Type | Base Mount |
| Number of Bands | 2 |
| RF Family/Standard | General ISM |
| Termination | M5 |
| VSWR | 2 |
