73L1R20J
ActiveCTS Resistor Products
RES 0.2 OHM 5% 1/10W 0402
73L1R20J
ActiveCTS Resistor Products
RES 0.2 OHM 5% 1/10W 0402
Description
General part information
73L1R20J

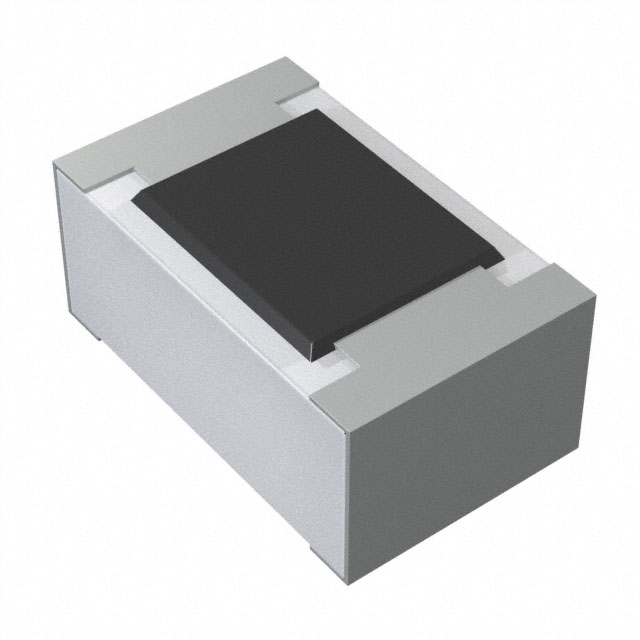

200 mOhms ±5% 0.1W, 1/10W Chip Resistor 0402 (1005 Metric) Current Sense Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | 73L1R20J |
|---|---|
| Composition | Thick Film |
| Features | Current Sense |
| Height - Seated (Max) | 0.016 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Package Name | 0402 |
| Power (Watts) | 100 mW |
| Power (Watts) Options | 1/10W |
| Resistance | 200 mOhms |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
