Description
General part information

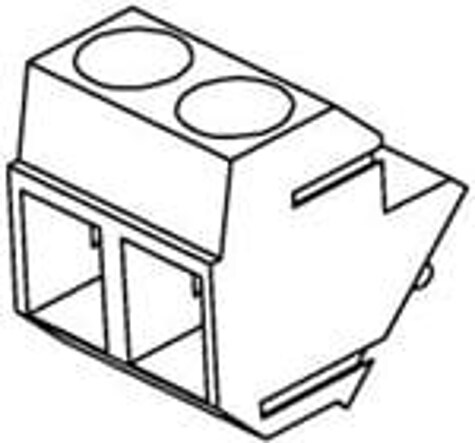

0395932213
FIXED TERMINAL BLOCKS 5.0MM EUROBLOCK PC 45 GRN 11A 13CKT
Technical Specifications
Parameters and characteristics for this part
| Specification | 0395932213 |
|---|---|
| Color | Green |
| Current | 10 A |
| Features | Interlocking (Side), Positions Stamped |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Positions Per Level | 13 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
