TAZF106K015CRSZ0000
ActiveKYOCERA AVX
CAP TANT 10UF 10% 15V 2214
TAZF106K015CRSZ0000
ActiveKYOCERA AVX
CAP TANT 10UF 10% 15V 2214
Description
General part information
TAZF106K015CRSZ0000

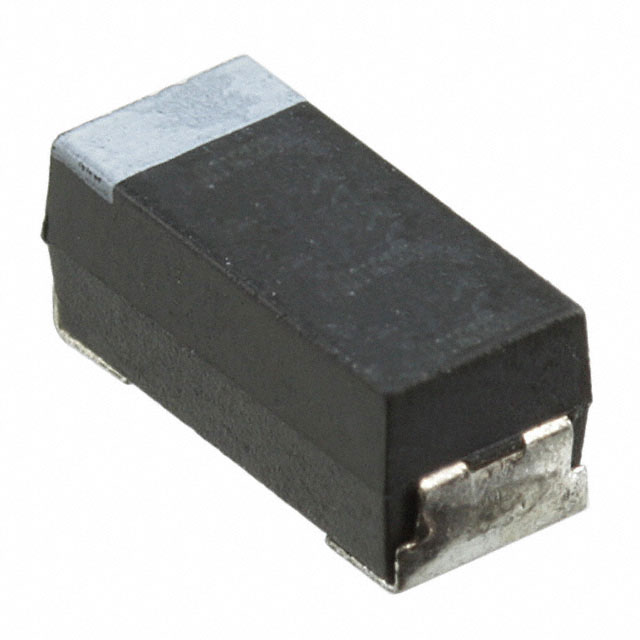

10 µF Molded Tantalum Capacitors 15 V 2214 (5634 Metric) 667mOhm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | TAZF106K015CRSZ0000 |
|---|---|
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | 667 mOhm |
| Features | High Reliability |
| Grade | Military |
| Height - Seated (Max) | 0.085 in |
| Manufacturer Size Code | F |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2214 (5634 Metric) |
| Qualification | 11, MIL-PRF-55365 |
| Ratings | COTS |
| Size / Dimension Length | 0.22 in |
| Size / Dimension Width | 0.135 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 15 V |
