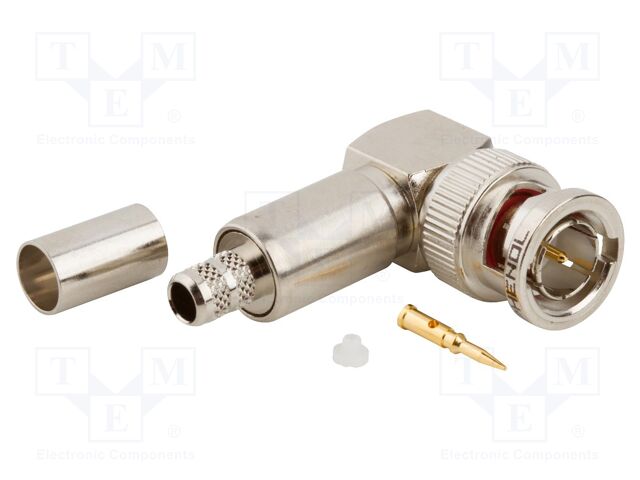

Specification	031-71010-RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-59 Plenum, 82108, Belden 1506, 9104
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max	2 GHz
Housing Color	Silver
Impedance	75 Ohm
Includes	Ferrule, Connector, Contact
Includes Total Count	3 pcs
Insertion Loss	0.2 dB
Mating Cycles	500 cycles
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Crimp
Voltage Rating	500 V

031-71 Series

Part	Connector Style	Shield Termination	Mounting Type	Number of Ports	Connector Type	Housing Color	Center Contact Material	Impedance	Fastening Type	Features	Mounting Feature	Contact Termination	Frequency - Max	Body Material	Dielectric Material	Mating Cycles	Insertion Loss	Center Contact Plating	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Voltage Rating	Cable Group	Cable Group Current Rating	Includes Total Count	Includes
McGill Microwave Systems 031-71058	BNC	Solder	Panel Mount Through Hole	1	Female Socket Jack	Silver White	Phosphor Bronze	75 Ohm	Bayonet Lock	Board Guide Isolated	Bulkhead Front Side Nut	Solder	1 GHz	Zinc Die Cast	Polypropylene (PP)	500 cycles	0.2 dB	Gold	-55 °C	85 °C	Nickel	500 V
McGill Microwave Systems 031-71047	BNC	Solder	Panel Mount Right Angle Through Hole	1	Female Socket Jack	Silver White	Phosphor Bronze	75 Ohm	Bayonet Lock	Board Guide Isolated	Bulkhead Front Side Nut	Solder	1 GHz	Zinc Die Cast	Polypropylene (PP)	500 cycles	0.2 dB	Gold	-55 °C	85 °C	Nickel	500 V
McGill Microwave Systems 031-71064	BNC	Crimp	Free Hanging (In-Line)	1	Male Pin Plug	Silver	Brass	75 Ohm	Bayonet Lock			Crimp Solder	4 GHz	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	0.2 dB	Gold	-65 °C	165 °C	Nickel	500 V	143 212 54 89248 9290 Belden 1152A RG-6	6 A	3 pcs	Connector Contact Ferrule
McGill Microwave Systems 031-71045-1010	BNC	Solder	Panel Mount Through Hole	1	Female Socket Jack	Silver	Phosphor Bronze	75 Ohm	Bayonet Lock	Board Lock	Bulkhead Front Side Nut	Solder	1 GHz	Zinc Die Cast	Polypropylene (PP)	500 cycles	0.2 dB	Gold	-55 °C	85 °C	Nickel	500 V
McGill Microwave Systems 031-71046	BNC	Solder	Panel Mount Right Angle Through Hole	1	Female Socket Jack	Black Silver	Phosphor Bronze	75 Ohm	Bayonet Lock	Board Guide Isolated	Bulkhead Front Side Nut	Solder	1 GHz	Zinc Die Cast	Polypropylene (PP)	500 cycles	0.2 dB	Gold	-55 °C	85 °C	Nickel	500 V
McGill Microwave Systems 031-71014-RFX	BNC	Crimp	Free Hanging (In-Line)	1	Female Socket Jack	Silver	Phosphor Bronze	75 Ohm	Bayonet Lock			Solder		Brass	Polyoxymethylene (POM) Acetal	500 cycles	0.2 dB	Gold	-40 °C	80 °C	Nickel	500 V	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179		4 pcs	Connector Contact Ferrule Sleeve
McGill Microwave Systems 031-71059	BNC	Solder	Panel Mount Through Hole	1	Female Socket Jack	Black Silver	Phosphor Bronze	75 Ohm	Bayonet Lock	Board Guide Isolated	Bulkhead Front Side Nut	Solder	1 GHz	Zinc Die Cast	Polypropylene (PP)	500 cycles	0.2 dB	Gold	-55 °C	85 °C	Nickel	500 V
McGill Microwave Systems 031-71000-RFX	BNC	Crimp	Free Hanging (In-Line)	1	Male Pin Plug	Silver	Brass	75 Ohm	Bayonet Lock			Crimp	2 GHz	Brass	Polyoxymethylene (POM) Acetal	500 cycles	0.2 dB	Gold	-40 °C	85 °C	Nickel	500 V	1694A 9248 Belden 1694 RG-6		3 pcs	Connector Contact Ferrule
McGill Microwave Systems 031-71052-1010	BNC	Solder	Panel Mount Right Angle Through Hole	1	Female Socket Jack	Silver White	Phosphor Bronze	75 Ohm	Bayonet Lock	Board Lock Isolated	Bulkhead Front Side Nut	Solder	1 GHz	Zinc Die Cast	Polypropylene (PP)	500 cycles	0.2 dB	Gold	-55 °C	85 °C	Nickel	500 V
McGill Microwave Systems 031-71009-RFX	BNC	Crimp	Free Hanging (In-Line)	1	Female Socket Jack	Silver	Phosphor Bronze	75 Ohm	Bayonet Lock			Crimp	4 GHz	Brass	Polyoxymethylene (POM) Acetal	500 cycles	0.2 dB	Gold	-65 °C	165 °C	Nickel	500 V	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59		3 pcs	Connector Contact Ferrule
