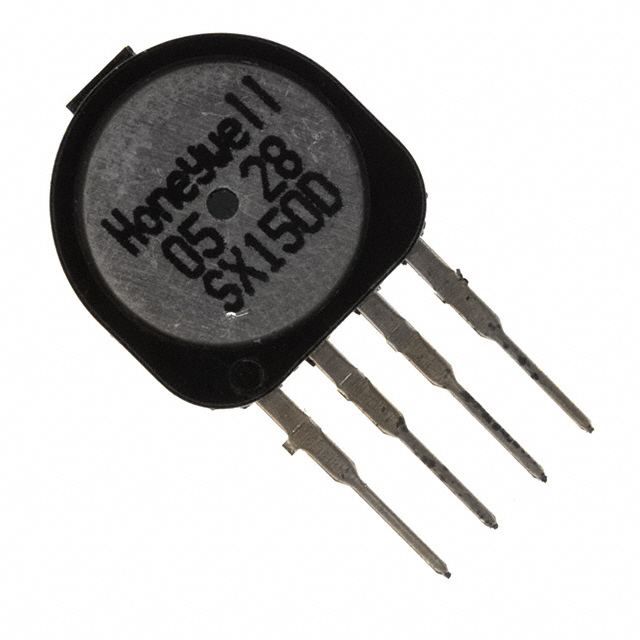

SX150D
ObsoleteHoneywell Sensing and Productivity Solutions
SENSOR 100PSID .11V BUTTON
SX150D
ObsoleteHoneywell Sensing and Productivity Solutions
SENSOR 100PSID .11V BUTTON
Description
General part information
SX150D
Pressure Sensor 100PSI (689.48kPa) Differential 0 mV ~ 110 mV (5V) 4-SIP Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SX150D |
|---|---|
| Accuracy | 0.5 % RH |
| Applications | Board Mount |
| Maximum Pressure | 200 PSI |
| Mounting Type | Through Hole |
| Operating Pressure | 100 PSI |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Wheatstone Bridge |
| Output Voltage (Max) | 110 mV |
| Output Voltage (Min) | 0 mV |
| Package / Case | 4-SIP Module |
| Package Name | Button |
| Port Style | No Port |
| Pressure Type | Differential |
| Voltage - Supply | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
