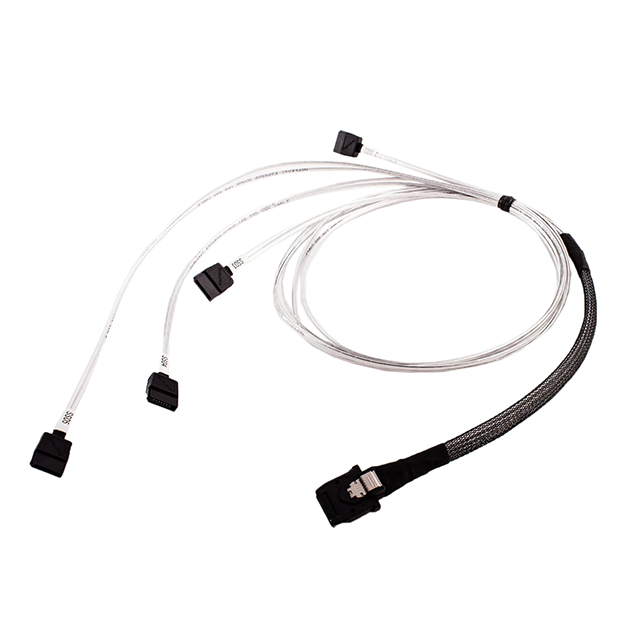

Specification	AMPH-874S-STEP-950LP

Cable Connectors	MiniSAS Low Profile, SATA 4x
Cable Type	Flat
Color	Black
Connector Type	Plug to Receptacle
Fastening Type	Latch Lock, Push-Pull
Features	6Gbps SAS2.1, Amphenol SFF-8087 to SATA 7Pin x4 Cable
Frequency - Max	4.5 GHz
Gender	Male to Female
Length	3.12 ft
Number of Positions	7 (4), 36
Shielding	Shielded
Usage	Internal
Wire Gauge	30 AWG

AMPH-874S Series

Part	Usage	Number of Positions	Length	Fastening Type	Gender	Cable Type	Shielding	Connector Type	Cable Connectors	Cable Connectors Count	Features	Color	Wire Gauge	Connector Pin Count	Frequency - Max
PT Speed AMPH-874S-STEP-1075B	Internal	36 7 (4)	3.53 ft	Latch Lock Push-Pull	Male to Female	Flat	Shielded	Plug to Receptacle	miniSAS SATA	4 pcs	6Gbps SAS2.1 Amphenol SFF-8087 to SATA 7Pin x4 Cable	Black
PT Speed AMPH-874S-STEP-575	Internal	36 7 (4)	1.89 ft	Latch Lock	Male to Female	Flat	Shielded	Plug to Receptacle	miniSAS SATA	4 pcs	6Gbps SAS2.1 Amphenol SFF-8087 to SATA 7Pin x4 Cable	Black
PT Speed AMPH-874S-RT-SB-650	Internal	36 7 (4)	2.13 ft	Latch Lock Push-Pull	Male to Female	Flat	Shielded	Plug to Receptacle	miniSAS SATA Right Angle	4 pcs	6Gbps SAS2.1 Amphenol SFF-8087 to SATA 7Pin x4 Cable	Black
PT Speed AMPH-874S-STEP-875	Internal	36 7 (4)	2.87 ft	Latch Lock Push-Pull	Male to Female	Flat	Shielded	Plug to Receptacle	miniSAS SATA	4 pcs	6Gbps SAS2.1 Amphenol SFF-8087 to SATA 7Pin x4 Cable	Black
PT Speed AMPH-874S-STEP-925-LP	Internal	36 7 (4)	3.03 ft	Latch Lock Push-Pull	Male to Female	Flat	Shielded	Plug to Receptacle	MiniSAS Low Profile SATA 4x		6Gbps SAS2.1 Amphenol SFF-8087 SATA Connectors	Black	30 AWG	4 pos	6000 MHz
PT Speed AMPH-874S-STEP-975-LP-A	Internal	36 7 (4)	3.2 ft	Latch Lock Push-Pull	Male to Female	Flat	Shielded	Plug to Receptacle	MiniSAS Low Profile SATA 4x		6Gbps SAS2.1 Amphenol SFF-8087 SATA Connectors	Black		4 pos
PT Speed AMPH-874S-STEP-975-LP-A	Internal	36 7 (4)	3.2 ft	Latch Lock Push-Pull	Male to Female	Flat	Shielded	Plug to Receptacle	MiniSAS Low Profile SATA 4x		6Gbps SAS2.1 Amphenol SFF-8087 SATA Connectors	Black	30 AWG	4 pos	6000 MHz
PT Speed AMPH-874S-100	Internal	36 7 (4)	3.28 ft	Latch Lock	Male to Female	Flat	Shielded	Plug to Receptacle	miniSAS SATA		6Gbps SAS2.1 Amphenol SFF-8087 to SATA 7Pin x4 Cable	Black
PT Speed AMPH-874S26-075	Internal	36 7 (4)	2.46 ft	Latch Lock Push-Pull	Male to Female	Flat	Shielded	Plug to Receptacle	miniSAS SATA	4 pcs	6Gbps SAS2.1 Amphenol SFF-8087 to SATA 7Pin x4 Cable	Black
PT Speed AMPH-874S-STEP-925-LP	Internal	36 7 (4)	3.03 ft	Latch Lock Push-Pull	Male to Female	Flat	Shielded	Plug to Receptacle	MiniSAS Low Profile SATA 4x		6Gbps SAS2.1 Amphenol SFF-8087 SATA Connectors	Black		4 pos

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
