FCAC-150-KY4
ActiveTE Connectivity AMP Connectors

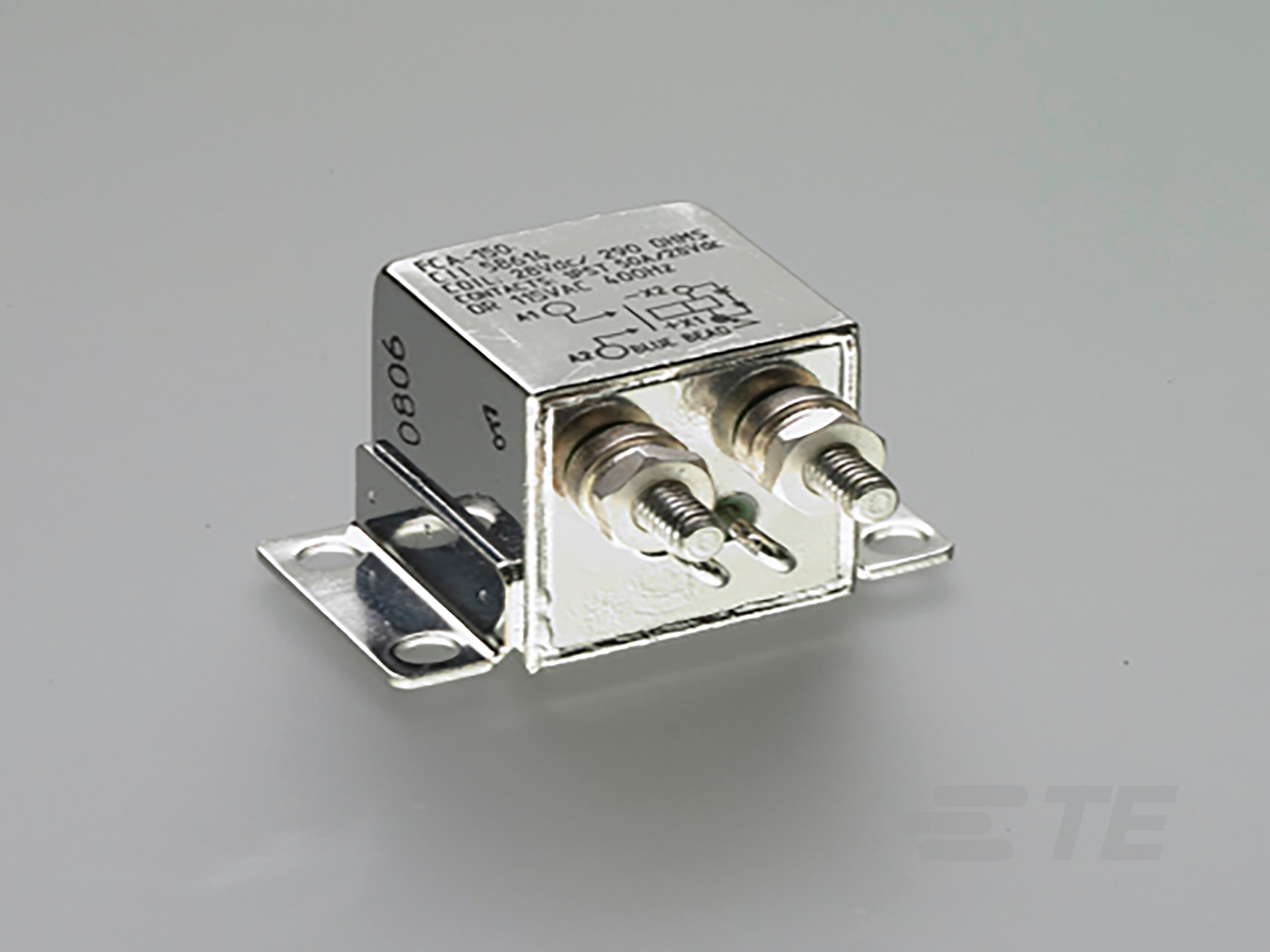

FCAC-150-KY4=50 AMP MID RANGE RELAY
FCAC-150-KY4
ActiveTE Connectivity AMP Connectors
FCAC-150-KY4=50 AMP MID RANGE RELAY
Description
General part information
FCAC-150-KY4
General Purpose Power Relay, DC, Polarized, Monostable, 1 Form X SPST-NO-DM, 50 A Contact Rating, 28 VDC Coil Voltage, Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FCAC-150-KY4 |
|---|---|
| Coil Current | 96.6 mA |
| Coil Type | Non Latching |
| Coil Voltage | 28 VDC |
| Contact Form | Form, X, 1, SPST-NO, DM |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 50 A |
| Features | Diode |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.5 VDC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -70 °C |
| Relay Type | General Purpose |
| Seal Rating | Sealed, Hermetically |
| Termination Style | Stud |
