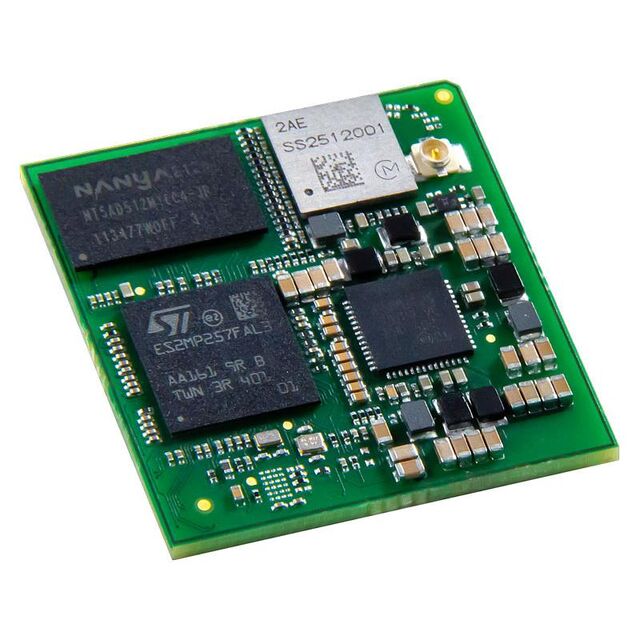

CC-WST-J17D-NK
ActiveDigi International
CONNECTCORE 8GB FLASH
CC-WST-J17D-NK
ActiveDigi International
CONNECTCORE 8GB FLASH
Description
General part information
CC-WST-J17D-NK
ConnectCore® Embedded Module STM32MP255F 200MHz, 400MHz, 1.5GHz 1GB 8GB eMMC
Technical Specifications
Parameters and characteristics for this part
| Specification | CC-WST-J17D-NK |
|---|---|
| Connector Type | Pin(s) |
| Core Processor | STM32MP255F |
| Flash Size (eMMC) | 8 GB |
| Flash Type | eMMC |
| Module/Board Type | MPU |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RAM Size | 1 GB |
| Size / Dimension Length | 1.181 in |
| Size / Dimension Width | 1.181 in |
| Speed | 200 MHz, 400 MHz, 1.5 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
