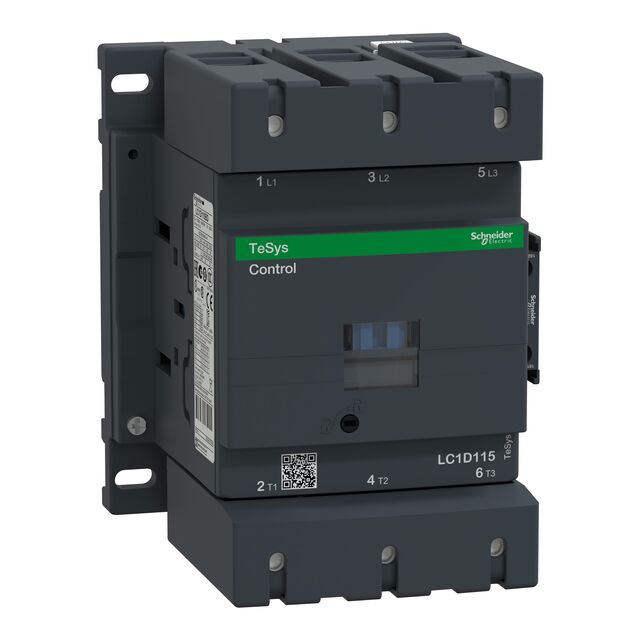

LC1D115MD
ActiveSCHNEIDER ELECTRIC
CONTACTOR TESYSDECA 115A 3P 220V
LC1D115MD
ActiveSCHNEIDER ELECTRIC
CONTACTOR TESYSDECA 115A 3P 220V
Description
General part information
LC1D115MD
CONTACTOR TESYSDECA 115A 3P 220V
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D115MD |
|---|---|
| Coil Voltage | 220 V |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 115 A |
| Features | Diode, Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 165 VAC |
| Must Release Voltage | 33 VAC |
| Operate Time | 35 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 75 ms |
| Switching Voltage AC (Max) | 1000 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
