1924879-1
ActiveTE Connectivity AMP Connectors

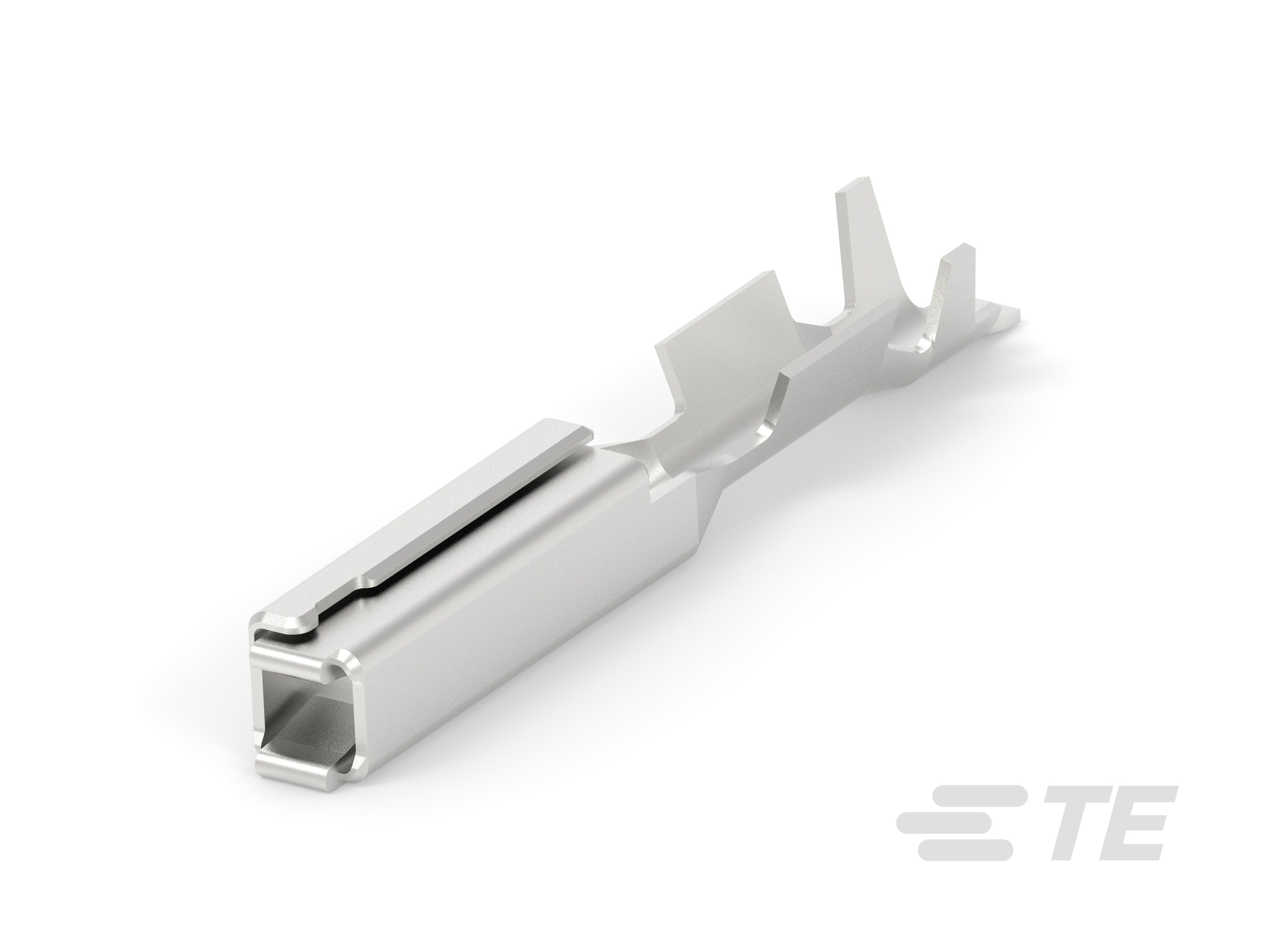

GET, FEMALE TERMINAL, AGSN, TH
1924879-1
ActiveTE Connectivity AMP Connectors
GET, FEMALE TERMINAL, AGSN, TH
Description
General part information
1924879-1
Receptacle Terminal, 20 – 18 AWG, .5 – .823 mm² Wire, 1.2 mm [.047 in] Tab Width, Tin (Sn), Unsealed, Terminates To Wire, Get .64 Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 1924879-1 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 39.4 Ąin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Power |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
306-Way Power Control Module (PCM) Female Connectors 2236994-[ ] and 2236995-[ ] (90-Way) and 2236993-[ ] (126-Way)
GET New Generation Female 0.64 mm Socket Contacts
Assembly Procedures for 96-Position GPEC II and III Sealed Connector System (Harness)
Mating and Unmating Procedures for 96-Position GPEC II Sealed Connector Assembly
ENG_CD_1924879_C.pdf
Datasheet
