1380087-1
ActiveTE Connectivity AMP Connectors

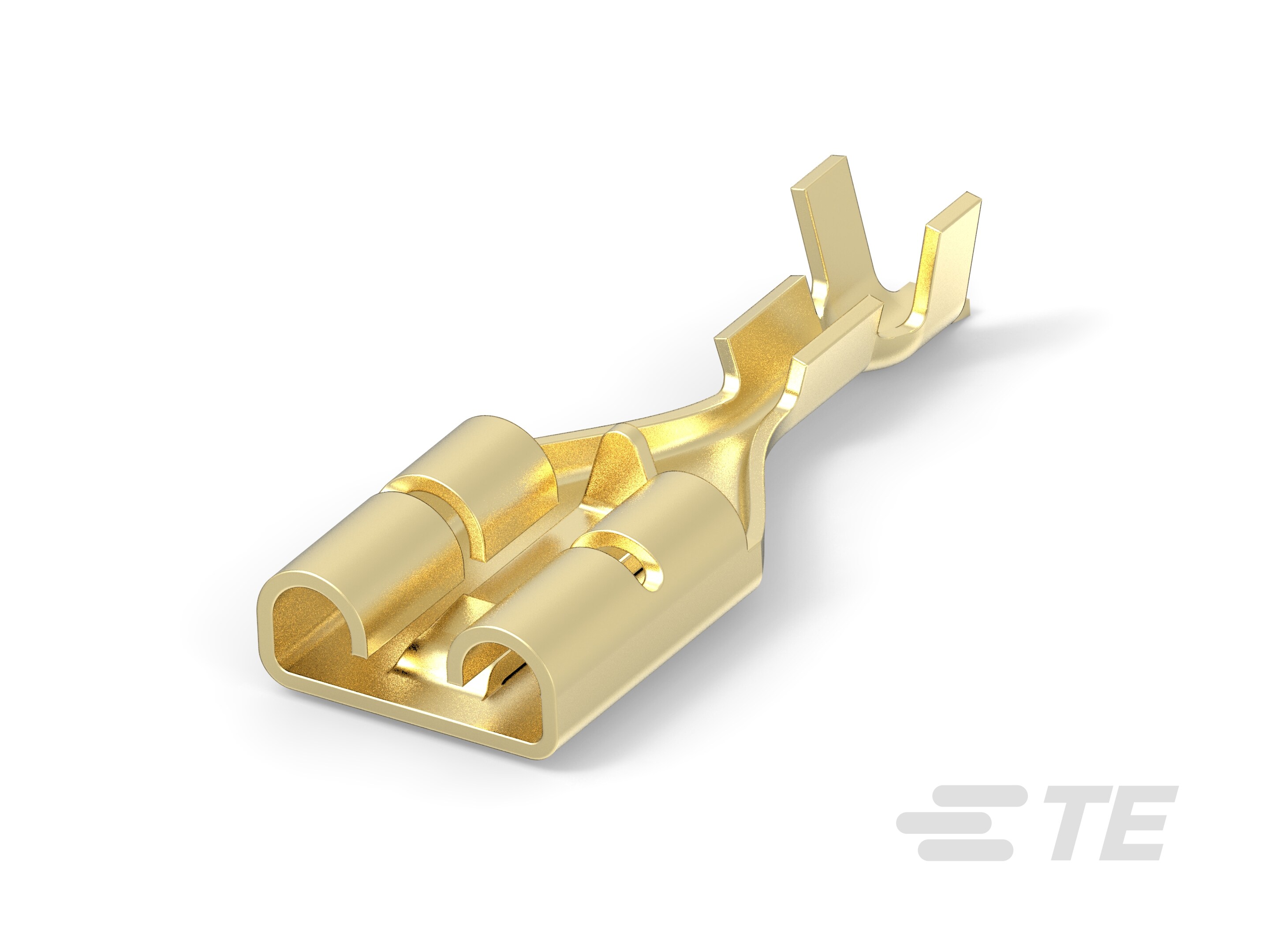

PL MKIII .250 REC 0.2-0.5MM2
1380087-1
ActiveTE Connectivity AMP Connectors
PL MKIII .250 REC 0.2-0.5MM2
Description
General part information
Mark III Series
Quick Disconnect Receptacle, 24 – 20 AWG, .2 – .51 mm² Wire, Straight, Brass, Unplated Plating, Strip/Reel, F-Crimp, Open Barrel, Positive Lock 250
Technical Specifications
Parameters and characteristics for this part
| Specification | 1380087-1 |
|---|---|
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Length - Overall | 0.771 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.293 in |
| Tab Thickness | 0.016 in |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Flag, Crimb |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
